Debugger.h File Reference

#include "temu-c/Support/Objsys.h"
#include <stdint.h>

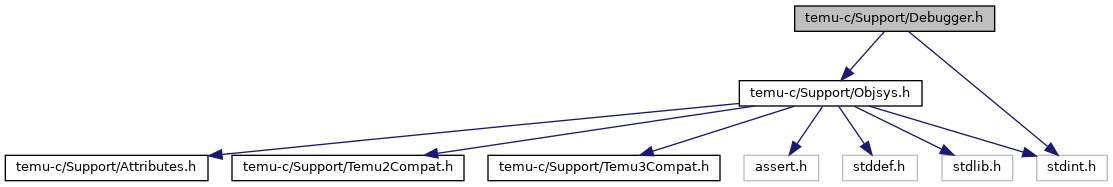

Include dependency graph for Debugger.h:

Go to the source code of this file.

Data Structures
struct	temu_DebuggerIface

Macros
#define	TEMU_DEBUGGER_IFACE_TYPE   "temu::DebuggerIface"

Typedefs
typedef struct temu_TimeSource	temu_TimeSource
typedef struct temu_Object	temu_Object
typedef struct temu_MemTransaction	temu_MemTransaction

Enumerations
enum	temu_BreakState { teBS_Ignore, teBS_Handle }
enum	temu_BreakAction { teBA_Stop, teBA_Resume }

Functions
int	temu_debuggerGetCurrentProcessor ()
void	temu_debuggerStop ()
void	temu_debuggerCont ()
void	temu_debuggerStep (temu_TimeSource *cpu, int steps)
void	temu_debuggerAttach (void *debugger, temu_DebuggerIface *debuggerIface)
void	temu_debuggerConnected ()
void	temu_debuggerDetach (void *debugger)

Macro Definition Documentation

TEMU_DEBUGGER_IFACE_TYPE

#define TEMU_DEBUGGER_IFACE_TYPE   "temu::DebuggerIface"

Typedef Documentation

temu_MemTransaction

typedef struct temu_MemTransaction temu_MemTransaction

temu_Object

typedef struct temu_Object temu_Object

temu_TimeSource

typedef struct temu_TimeSource temu_TimeSource

Enumeration Type Documentation

temu_BreakAction

enum temu_BreakAction

Enumerator
teBA_Stop
teBA_Resume

temu_BreakState

enum temu_BreakState

Enumerator
teBS_Ignore
teBS_Handle

Function Documentation

temu_debuggerAttach()

void temu_debuggerAttach	(	void *	debugger,
		temu_DebuggerIface *	debuggerIface
	)

Attach a debugger to the current scheduler

This attaches a debugger to the scheduler, ensuring it is notified about events such as breakpoints and watchpoints.

temu_debuggerConnected()

void temu_debuggerConnected

(

)

Notify debugger infrastructure that a remote connection has been made

temu_debuggerCont()

void temu_debuggerCont

(

)

Resume the scheduler from a debugger

Resumes the scheduler after a stop or breakpoint. Note the function returns immediately. The debugger server is expected to listen for events through the debugger interface instead.

temu_debuggerDetach()

void temu_debuggerDetach

(

void *

debugger

)

Detach the debugger from the current scheduler

This attaches a debugger to the scheduler, ensuring it is notified about events such as breakpoints and watchpoints.

temu_debuggerGetCurrentProcessor()

int temu_debuggerGetCurrentProcessor

(

)

Return current processor number

Returns -1 when running, or stopped CPU number after breakpoint hit.

temu_debuggerStep()

void temu_debuggerStep	(	temu_TimeSource *	cpu,
		int	steps
	)

Step the given processor.

The debugger must be attached, and the function will block until the scheduler is running using temu_run*() functions.

temu_debuggerStop()

void temu_debuggerStop

(

)

Stop the scheduler from a debugger

This function is intended to be used by the GDB server. It stops the scheduler as soon as possible, without returning from the temu_run*() functions.

The function is blocking until the core has been stopped. If the core is currently not running, this function waits until someone calls temu_run*().
