#include "temu-c/Support/Bitmanip.h"
#include "temu-c/Support/Buffer.h"
#include "temu-c/Support/Objsys.h"
#include <stdint.h>

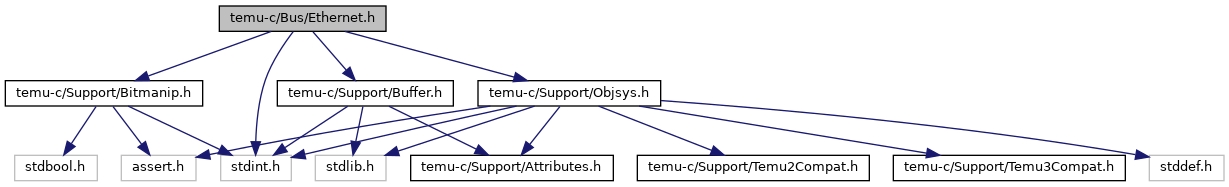

Include dependency graph for Ethernet.h:

Go to the source code of this file.

Data Structures
struct	temu_EthFrame

struct	temu_MACIface

struct	temu_PHYIface

struct	temu_EthernetIface

struct	temu_MDIOIface

struct	temu_EthDelayIface

Macros
#define	TEMU_ETH_CRC_ERR 1

#define	TEMU_ETH_ETH_CRC_NOT_SET (1 << 1)

#define	TEMU_ETH_IP_CRC_NOT_SET (1 << 2)

#define	TEMU_ETH_UDP_CRC_NOT_SET (1 << 3)

#define	TEMU_ETH_TCP_CRC_NOT_SET (1 << 4)

#define	TEMU_ETH_NON_STANDARD_PREAMBLE (1 << 5)

#define	TEMU_ETH_PREAMBLE_LENGTH_MASK (0xf << 6)

#define	TEMU_ETH_PREAMBLE_LENGTH_SHIFT 6

#define	TEMU_MAC_IFACE_TYPE "temu::MACIface"

#define	TEMU_PHY_IFACE_TYPE "temu::PHYIface"

#define	TEMU_ETH_100BASE_T4 (1 << (15 - 8))

#define	TEMU_ETH_100BASE_X_FD (1 << (14 - 8))

#define	TEMU_ETH_100BASE_X_HD (1 << (13 - 8))

#define	TEMU_ETH_10BASE_FD (1 << (12 - 8))

#define	TEMU_ETH_10BASE_HD (1 << (11 - 8))

#define	TEMU_ETH_100BASE_T2_FD (1 << (10 - 8))

#define	TEMU_ETH_100BASE_T2_HD (1 << (9 - 8))

#define	TEMU_ETH_1000BASE_X_FD (1 << 15)

#define	TEMU_ETH_1000BASE_X_HD (1 << 14)

#define	TEMU_ETH_1000BASE_T_FD (1 << 13)

#define	TEMU_ETH_1000BASE_T_HD (1 << 12)

#define	TEMU_ETHERNET_IFACE_TYPE "temu::EthernetIface"

#define	TEMU_MDIO_IFACE_TYPE "temu::MDIOIface"

#define	TEMU_ETH_DELAY_IFACE_TYPE "temu::EthDelayIface"

#define	TEMU_ETH_MIN_PAYLOAD 46

#define	TEMU_ETH_MAX_PAYLOAD 1500

#define	TEMU_ETH_LAYER1_HEADER_LENGTH (7 + 1 + 12 + 2)

#define	TEMU_ETH_LAYER2_HEADER_LENGTH (6 + 6 + 2)

#define	TEMU_ETH_CRC_LENGTH 4

#define	TEMU_ETH_INTERPACKET_GAP 12

#define	TEMU_ETH_PAYLOAD_OFFSET (6 + 6 + 2)

#define	TEMU_ETH_MAX_FRAME_LENGTH 1518

#define	TEMU_ETH_802_1Q_TAG_BYTES 4

#define	TEMU_ETH_802_1Q_MAX_FRAME_LENGTH 1522

#define	TEMU_ETHTYPE_IPV4 0x0800

#define	TEMU_ETHTYPE_ARP 0x0806

#define	TEMU_ETHTYPE_WAKE_ON_LAN 0x0842

#define	TEMU_ETHTYPE_SRP 0x22ea

#define	TEMU_ETHTYPE_RARP 0x8035

#define	TEMU_ETHTYPE_802_1Q 0x8100

#define	TEMU_ETHTYPE_IPV6 0x86dd

#define	TEMU_ETHTYPE_PTP 0x88f7

#define	TEMU_ETHTYPE_TTE_CTRL 0x891d

#define	TEMU_ETH_IPV4_VERS_IHL_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 0)

#define	TEMU_ETH_IPV4_DSCP_ECN_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 1)

#define	TEMU_ETH_IPV4_TOTAL_LENGTH_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 2)

#define	TEMU_ETH_IPV4_FRAGMENTATION_INFO_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 6)

#define	TEMU_ETH_IPV4_TTL_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 8)

#define	TEMU_ETH_IPV4_PROTOCOL_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 9)

#define	TEMU_ETH_IPV4_CRC_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 10)

#define	TEMU_ETH_IPV4_SRC_IP_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 12)

#define	TEMU_ETH_IPV4_DST_IP_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 16)

#define	TEMU_IP_PROT_TCP 0x06

#define	TEMU_IP_PROT_UDP 0x11

#define	TEMU_TCP_CRC_OFFSET 16

#define	TEMU_UDP_CRC_OFFSET 6

#define	ETH_BCAST_ADDR UINT64_C(0xffffffffffff)

#define	ETH_ETHERTYPE_MIN 1536

#define	ETH_CRC_MAGIC 0xC704DD7B

#define	ETH_CRC_POLY_NORM 0x04C11DB7

#define	ETH_CRC_POLY_REV 0xEDB88320

#define	ETH_CRC_POLY_REV_RECIP 0x82608EDB

#define	ETH_CRC_POLY_LE 0xedb88320

#define	ETH_CRC_POLY_BE 0x04c11db6

Typedefs
typedef struct temu_PHYIface	temu_PHYIface

typedef struct temu_MACIface	temu_MACIface

typedef struct temu_EthernetIface	temu_EthernetIface

Functions
	TEMU_IFACE_REFERENCE_TYPE (temu_MAC)

	TEMU_IFACE_REFERENCE_TYPE (temu_PHY)

	TEMU_IFACE_REFERENCE_TYPE (temu_Ethernet)

	TEMU_IFACE_REFERENCE_TYPE (temu_MDIO)

Macro Definition Documentation

◆ ETH_BCAST_ADDR

#define ETH_BCAST_ADDR UINT64_C(0xffffffffffff)

◆ ETH_CRC_MAGIC

#define ETH_CRC_MAGIC 0xC704DD7B

◆ ETH_CRC_POLY_BE

#define ETH_CRC_POLY_BE 0x04c11db6

◆ ETH_CRC_POLY_LE

#define ETH_CRC_POLY_LE 0xedb88320

◆ ETH_CRC_POLY_NORM

#define ETH_CRC_POLY_NORM 0x04C11DB7

◆ ETH_CRC_POLY_REV

#define ETH_CRC_POLY_REV 0xEDB88320

◆ ETH_CRC_POLY_REV_RECIP

#define ETH_CRC_POLY_REV_RECIP 0x82608EDB

◆ ETH_ETHERTYPE_MIN

#define ETH_ETHERTYPE_MIN 1536

◆ TEMU_ETH_1000BASE_T_FD

#define TEMU_ETH_1000BASE_T_FD (1 << 13)

◆ TEMU_ETH_1000BASE_T_HD

#define TEMU_ETH_1000BASE_T_HD (1 << 12)

◆ TEMU_ETH_1000BASE_X_FD

#define TEMU_ETH_1000BASE_X_FD (1 << 15)

◆ TEMU_ETH_1000BASE_X_HD

#define TEMU_ETH_1000BASE_X_HD (1 << 14)

◆ TEMU_ETH_100BASE_T2_FD

#define TEMU_ETH_100BASE_T2_FD (1 << (10 - 8))

◆ TEMU_ETH_100BASE_T2_HD

#define TEMU_ETH_100BASE_T2_HD (1 << (9 - 8))

◆ TEMU_ETH_100BASE_T4

#define TEMU_ETH_100BASE_T4 (1 << (15 - 8))

◆ TEMU_ETH_100BASE_X_FD

#define TEMU_ETH_100BASE_X_FD (1 << (14 - 8))

◆ TEMU_ETH_100BASE_X_HD

#define TEMU_ETH_100BASE_X_HD (1 << (13 - 8))

◆ TEMU_ETH_10BASE_FD

#define TEMU_ETH_10BASE_FD (1 << (12 - 8))

◆ TEMU_ETH_10BASE_HD

#define TEMU_ETH_10BASE_HD (1 << (11 - 8))

◆ TEMU_ETH_802_1Q_MAX_FRAME_LENGTH

#define TEMU_ETH_802_1Q_MAX_FRAME_LENGTH 1522

◆ TEMU_ETH_802_1Q_TAG_BYTES

#define TEMU_ETH_802_1Q_TAG_BYTES 4

◆ TEMU_ETH_CRC_ERR

#define TEMU_ETH_CRC_ERR 1

◆ TEMU_ETH_CRC_LENGTH

#define TEMU_ETH_CRC_LENGTH 4

◆ TEMU_ETH_DELAY_IFACE_TYPE

#define TEMU_ETH_DELAY_IFACE_TYPE "temu::EthDelayIface"

◆ TEMU_ETH_ETH_CRC_NOT_SET

#define TEMU_ETH_ETH_CRC_NOT_SET (1 << 1)

◆ TEMU_ETH_INTERPACKET_GAP

#define TEMU_ETH_INTERPACKET_GAP 12

◆ TEMU_ETH_IP_CRC_NOT_SET

#define TEMU_ETH_IP_CRC_NOT_SET (1 << 2)

◆ TEMU_ETH_IPV4_CRC_OFFSET

#define TEMU_ETH_IPV4_CRC_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 10)

◆ TEMU_ETH_IPV4_DSCP_ECN_OFFSET

#define TEMU_ETH_IPV4_DSCP_ECN_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 1)

◆ TEMU_ETH_IPV4_DST_IP_OFFSET

#define TEMU_ETH_IPV4_DST_IP_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 16)

◆ TEMU_ETH_IPV4_FRAGMENTATION_INFO_OFFSET

#define TEMU_ETH_IPV4_FRAGMENTATION_INFO_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 6)

◆ TEMU_ETH_IPV4_PROTOCOL_OFFSET

#define TEMU_ETH_IPV4_PROTOCOL_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 9)

◆ TEMU_ETH_IPV4_SRC_IP_OFFSET

#define TEMU_ETH_IPV4_SRC_IP_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 12)

◆ TEMU_ETH_IPV4_TOTAL_LENGTH_OFFSET

#define TEMU_ETH_IPV4_TOTAL_LENGTH_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 2)

◆ TEMU_ETH_IPV4_TTL_OFFSET

#define TEMU_ETH_IPV4_TTL_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 8)

◆ TEMU_ETH_IPV4_VERS_IHL_OFFSET

#define TEMU_ETH_IPV4_VERS_IHL_OFFSET (TEMU_ETH_PAYLOAD_OFFSET + 0)

◆ TEMU_ETH_LAYER1_HEADER_LENGTH

#define TEMU_ETH_LAYER1_HEADER_LENGTH (7 + 1 + 12 + 2)

◆ TEMU_ETH_LAYER2_HEADER_LENGTH

#define TEMU_ETH_LAYER2_HEADER_LENGTH (6 + 6 + 2)

◆ TEMU_ETH_MAX_FRAME_LENGTH

#define TEMU_ETH_MAX_FRAME_LENGTH 1518

◆ TEMU_ETH_MAX_PAYLOAD

#define TEMU_ETH_MAX_PAYLOAD 1500

◆ TEMU_ETH_MIN_PAYLOAD

#define TEMU_ETH_MIN_PAYLOAD 46

◆ TEMU_ETH_NON_STANDARD_PREAMBLE

#define TEMU_ETH_NON_STANDARD_PREAMBLE (1 << 5)

◆ TEMU_ETH_PAYLOAD_OFFSET

#define TEMU_ETH_PAYLOAD_OFFSET (6 + 6 + 2)

◆ TEMU_ETH_PREAMBLE_LENGTH_MASK

#define TEMU_ETH_PREAMBLE_LENGTH_MASK (0xf << 6)

◆ TEMU_ETH_PREAMBLE_LENGTH_SHIFT

#define TEMU_ETH_PREAMBLE_LENGTH_SHIFT 6

◆ TEMU_ETH_TCP_CRC_NOT_SET

#define TEMU_ETH_TCP_CRC_NOT_SET (1 << 4)

◆ TEMU_ETH_UDP_CRC_NOT_SET

#define TEMU_ETH_UDP_CRC_NOT_SET (1 << 3)

◆ TEMU_ETHERNET_IFACE_TYPE

#define TEMU_ETHERNET_IFACE_TYPE "temu::EthernetIface"

◆ TEMU_ETHTYPE_802_1Q

#define TEMU_ETHTYPE_802_1Q 0x8100

◆ TEMU_ETHTYPE_ARP

#define TEMU_ETHTYPE_ARP 0x0806

◆ TEMU_ETHTYPE_IPV4

#define TEMU_ETHTYPE_IPV4 0x0800

◆ TEMU_ETHTYPE_IPV6

#define TEMU_ETHTYPE_IPV6 0x86dd

◆ TEMU_ETHTYPE_PTP

#define TEMU_ETHTYPE_PTP 0x88f7

◆ TEMU_ETHTYPE_RARP

#define TEMU_ETHTYPE_RARP 0x8035

◆ TEMU_ETHTYPE_SRP

#define TEMU_ETHTYPE_SRP 0x22ea

◆ TEMU_ETHTYPE_TTE_CTRL

#define TEMU_ETHTYPE_TTE_CTRL 0x891d

◆ TEMU_ETHTYPE_WAKE_ON_LAN

#define TEMU_ETHTYPE_WAKE_ON_LAN 0x0842

◆ TEMU_IP_PROT_TCP

#define TEMU_IP_PROT_TCP 0x06

◆ TEMU_IP_PROT_UDP

#define TEMU_IP_PROT_UDP 0x11

◆ TEMU_MAC_IFACE_TYPE

#define TEMU_MAC_IFACE_TYPE "temu::MACIface"

◆ TEMU_MDIO_IFACE_TYPE

#define TEMU_MDIO_IFACE_TYPE "temu::MDIOIface"

◆ TEMU_PHY_IFACE_TYPE

#define TEMU_PHY_IFACE_TYPE "temu::PHYIface"

◆ TEMU_TCP_CRC_OFFSET

#define TEMU_TCP_CRC_OFFSET 16

◆ TEMU_UDP_CRC_OFFSET

#define TEMU_UDP_CRC_OFFSET 6

Typedef Documentation

◆ temu_EthernetIface

typedef struct temu_EthernetIface temu_EthernetIface

◆ temu_MACIface

typedef struct temu_MACIface temu_MACIface

◆ temu_PHYIface

typedef struct temu_PHYIface temu_PHYIface

Function Documentation

◆ TEMU_IFACE_REFERENCE_TYPE() [1/4]

TEMU_IFACE_REFERENCE_TYPE ( temu_Ethernet )

◆ TEMU_IFACE_REFERENCE_TYPE() [2/4]

TEMU_IFACE_REFERENCE_TYPE ( temu_MAC )

◆ TEMU_IFACE_REFERENCE_TYPE() [3/4]

TEMU_IFACE_REFERENCE_TYPE ( temu_MDIO )

◆ TEMU_IFACE_REFERENCE_TYPE() [4/4]

TEMU_IFACE_REFERENCE_TYPE ( temu_PHY )
