MilStd1553.h File Reference

#include "temu-c/Support/Objsys.h"
#include <assert.h>
#include <stdbool.h>
#include <stdint.h>

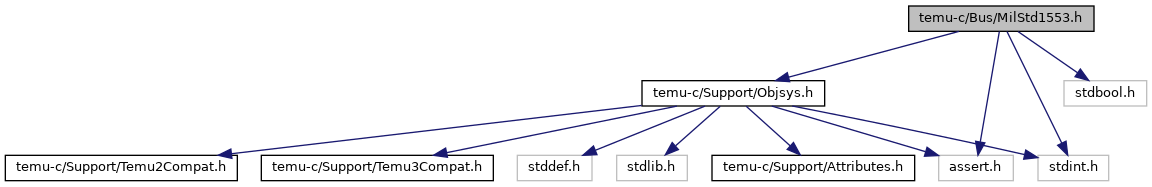

Include dependency graph for MilStd1553.h:

Go to the source code of this file.

Data Structures
struct	temu_Mil1553Msg
struct	temu_Mil1553BusIdleInfo
struct	temu_Mil1553DevIface
struct	temu_Mil1553BusIface
struct	temu_Mil1553Stats

Macros
#define	TEMU_1553_MSG_FLAG_INHIBIT_A   0x1
#define	TEMU_1553_MSG_FLAG_INHIBIT_B   0x2
#define	TEMU_1553_NS_PER_WORD   20000
#define	TEMU_1553_BITS_PER_WORD   20
#define	TEMU_MIL1553_DEV_IFACE_TYPE   "Mil1553DevIface"
#define	TEMU_MIL1553_BUS_IFACE_TYPE   "Mil1553BusIface"
#define	TEMU_1553_TR_BIT   0x20
#define	TEMU_1553_DYN_BUS_CTRL   0x00
#define	TEMU_1553_SYNC_NO_DATA   0x01
#define	TEMU_1553_TRANSMIT_STATUS_WORD   0x02
#define	TEMU_1553_INITIATE_SELF_TEST   0x03
#define	TEMU_1553_TRANSMITTER_SHUTDOWN   0x04
#define	TEMU_1553_OVERRIDE_TRANSMITTER   0x05
#define	TEMU_1553_INHIBIT_TERM_FLAG_BIT   0x06
#define	TEMU_1553_OVERRIDE_INHIBIT_TERM_FLAG_BIT   0x07
#define	TEMU_1553_RESET_RT   0x08
#define	TEMU_1553_TRANSMIT_VECTOR_WORD   0x10
#define	TEMU_1553_SYNC_WITH_DATA   0x11
#define	TEMU_1553_TRANSMIT_LAST_CMD   0x12
#define	TEMU_1553_TRANSMIT_BIT_WORD   0x13
#define	TEMU_1553_SELECTED_TRANSMITTER   0x14
#define	TEMU_1553_OVERRIDE_SELECTED_TRANSMITTER   0x15

Typedefs
typedef enum temu_Mil1553Error	temu_Mil1553Error
typedef enum temu_Mil1553MsgType	temu_Mil1553MsgType
typedef struct temu_Mil1553Msg	temu_Mil1553Msg
typedef struct temu_Mil1553DevIface	temu_Mil1553DevIface
typedef struct temu_Mil1553BusIface	temu_Mil1553BusIface
typedef enum temu_Mil1553BusResetType	temu_Mil1553BusResetType

Enumerations
enum	temu_Mil1553Error { teME_NoError = 0, teME_ParityError = 1, teME_SyncError = 1 << 1 }
enum	temu_Mil1553MsgType { teMT_Cmd, teMT_Data, teMT_Stat }
enum	temu_Mil1553BusResetType { teMBR_Nominal = 0 }

Functions
	TEMU_IFACE_REFERENCE_TYPE (temu_Mil1553Dev)
	TEMU_IFACE_REFERENCE_TYPE (temu_Mil1553Bus)

Macro Definition Documentation

TEMU_1553_BITS_PER_WORD

#define TEMU_1553_BITS_PER_WORD   20

TEMU_1553_DYN_BUS_CTRL

#define TEMU_1553_DYN_BUS_CTRL   0x00

TEMU_1553_INHIBIT_TERM_FLAG_BIT

#define TEMU_1553_INHIBIT_TERM_FLAG_BIT   0x06

TEMU_1553_INITIATE_SELF_TEST

#define TEMU_1553_INITIATE_SELF_TEST   0x03

TEMU_1553_MSG_FLAG_INHIBIT_A

#define TEMU_1553_MSG_FLAG_INHIBIT_A   0x1

TEMU_1553_MSG_FLAG_INHIBIT_B

#define TEMU_1553_MSG_FLAG_INHIBIT_B   0x2

TEMU_1553_NS_PER_WORD

#define TEMU_1553_NS_PER_WORD   20000

TEMU_1553_OVERRIDE_INHIBIT_TERM_FLAG_BIT

#define TEMU_1553_OVERRIDE_INHIBIT_TERM_FLAG_BIT   0x07

TEMU_1553_OVERRIDE_SELECTED_TRANSMITTER

#define TEMU_1553_OVERRIDE_SELECTED_TRANSMITTER   0x15

TEMU_1553_OVERRIDE_TRANSMITTER

#define TEMU_1553_OVERRIDE_TRANSMITTER   0x05

TEMU_1553_RESET_RT

#define TEMU_1553_RESET_RT   0x08

TEMU_1553_SELECTED_TRANSMITTER

#define TEMU_1553_SELECTED_TRANSMITTER   0x14

TEMU_1553_SYNC_NO_DATA

#define TEMU_1553_SYNC_NO_DATA   0x01

TEMU_1553_SYNC_WITH_DATA

#define TEMU_1553_SYNC_WITH_DATA   0x11

TEMU_1553_TR_BIT

#define TEMU_1553_TR_BIT   0x20

TEMU_1553_TRANSMIT_BIT_WORD

#define TEMU_1553_TRANSMIT_BIT_WORD   0x13

TEMU_1553_TRANSMIT_LAST_CMD

#define TEMU_1553_TRANSMIT_LAST_CMD   0x12

TEMU_1553_TRANSMIT_STATUS_WORD

#define TEMU_1553_TRANSMIT_STATUS_WORD   0x02

TEMU_1553_TRANSMIT_VECTOR_WORD

#define TEMU_1553_TRANSMIT_VECTOR_WORD   0x10

TEMU_1553_TRANSMITTER_SHUTDOWN

#define TEMU_1553_TRANSMITTER_SHUTDOWN   0x04

TEMU_MIL1553_BUS_IFACE_TYPE

#define TEMU_MIL1553_BUS_IFACE_TYPE   "Mil1553BusIface"

TEMU_MIL1553_DEV_IFACE_TYPE

#define TEMU_MIL1553_DEV_IFACE_TYPE   "Mil1553DevIface"

Typedef Documentation

temu_Mil1553BusIface

typedef struct temu_Mil1553BusIface temu_Mil1553BusIface

temu_Mil1553BusResetType

typedef enum temu_Mil1553BusResetType temu_Mil1553BusResetType

temu_Mil1553DevIface

typedef struct temu_Mil1553DevIface temu_Mil1553DevIface

temu_Mil1553Error

typedef enum temu_Mil1553Error temu_Mil1553Error

This is the 1553 device modelling API. It provides an interface to be used for implementing bus controllers and remote terminals.

The 1553 device interface is EXPERIMENTAL and UNSTABLE at the moment.

One limitation at the moment is that we do not support a specific bus monitor interface. However, it is possible to get reports via the "temu.mil1553send" event, this way you can sort of insert a virtual bus monitor. It does not let you configure a terminal as a bus monitor however. These events take an temu_Mil1553Msg pointer as the event info argument.

The 1553 bus is modeled on a phased message approach, this stem from the capability of supporting RT->RT transfers. Without the phases, each RT would need to have special logic to decode whether data is from the BC or an RT (i.e. is the first word a command or a status word).

temu_Mil1553Msg

typedef struct temu_Mil1553Msg temu_Mil1553Msg

temu_Mil1553MsgType

typedef enum temu_Mil1553MsgType temu_Mil1553MsgType

Enumeration Type Documentation

temu_Mil1553BusResetType

enum temu_Mil1553BusResetType

Enumerator
teMBR_Nominal

temu_Mil1553Error

enum temu_Mil1553Error

This is the 1553 device modelling API. It provides an interface to be used for implementing bus controllers and remote terminals.

The 1553 device interface is EXPERIMENTAL and UNSTABLE at the moment.

One limitation at the moment is that we do not support a specific bus monitor interface. However, it is possible to get reports via the "temu.mil1553send" event, this way you can sort of insert a virtual bus monitor. It does not let you configure a terminal as a bus monitor however. These events take an temu_Mil1553Msg pointer as the event info argument.

The 1553 bus is modeled on a phased message approach, this stem from the capability of supporting RT->RT transfers. Without the phases, each RT would need to have special logic to decode whether data is from the BC or an RT (i.e. is the first word a command or a status word).

Enumerator
teME_NoError
teME_ParityError
teME_SyncError

temu_Mil1553MsgType

enum temu_Mil1553MsgType

Enumerator
teMT_Cmd
teMT_Data
teMT_Stat

Function Documentation

TEMU_IFACE_REFERENCE_TYPE() [1/2]

TEMU_IFACE_REFERENCE_TYPE

(

temu_Mil1553Bus

)

TEMU_IFACE_REFERENCE_TYPE() [2/2]

TEMU_IFACE_REFERENCE_TYPE

(

temu_Mil1553Dev

)
