Scheduler.h File Reference

#include <stdint.h>
#include "temu-c/Support/Attributes.h"

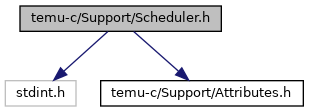

Include dependency graph for Scheduler.h:

Go to the source code of this file.

Typedefs
typedef struct temu_TimeSource	temu_TimeSource
typedef struct temu_Object	temu_Object
typedef enum temu_ExecutionState	temu_ExecutionState

Enumerations
enum	temu_ExecutionState { teES_Stopped, teES_Running, teES_Stepping }

Functions
TEMU_API void	temu_runForSteps (int64_t steps)
TEMU_API void	temu_runForTime (double secs)
TEMU_API void	temu_run ()
TEMU_API void	temu_step (temu_TimeSource *cpu, int steps)
TEMU_API void	temu_stop ()
TEMU_API void	temu_asyncStop ()
TEMU_API temu_ExecutionState	temu_getExecutionState ()
TEMU_API unsigned	temu_getScheduledProcessorCount ()
TEMU_API temu_TimeSource *	temu_getScheduledProcessor (unsigned cpu)
TEMU_API void	temu_serializeOnNotification (temu_Object *notificationSource, const char *notificationName, double seconds)
TEMU_API uint64_t	temu_schedulerGetAccumulatedTime ()
TEMU_API uint64_t	temu_schedulerGetSyncTime (unsigned threadId)
TEMU_API uint64_t	temu_schedulerGetWaitTime (unsigned threadId)
TEMU_API void	temu_schedulerSetAffinity (unsigned threadId, int hostCore)
TEMU_API int64_t	temu_schedulerGetAffinity (unsigned threadId)

Typedef Documentation

temu_ExecutionState

typedef enum temu_ExecutionState temu_ExecutionState

temu_Object

typedef struct temu_Object temu_Object

temu_TimeSource

typedef struct temu_TimeSource temu_TimeSource

Enumeration Type Documentation

temu_ExecutionState

enum temu_ExecutionState

Enumerator
teES_Stopped
teES_Running
teES_Stepping

Function Documentation

temu_asyncStop()

TEMU_API void temu_asyncStop

(

)

Stop the current scheduler

The function returns immediately, before the scheduler has stopped. The function is suitable for use in e.g. signal handlers.

temu_getExecutionState()

TEMU_API temu_ExecutionState temu_getExecutionState

(

)

Get the current execution status of TEMU

Returns

Current execution status

temu_getScheduledProcessor()

TEMU_API temu_TimeSource* temu_getScheduledProcessor

(

unsigned

cpu

)

Get processor in global scheduler

Parameters

cpu	Processor number to get

Returns

Processor pointer as a time source.

temu_getScheduledProcessorCount()

TEMU_API unsigned temu_getScheduledProcessorCount

(

)

Get the number of processors in the global scheduler.

Returns

Number of processors in global scheduler.

temu_run()

TEMU_API void temu_run

(

)

Run the current scheduler forever

temu_runForSteps()

TEMU_API void temu_runForSteps

(

int64_t

steps

)

Run the current scheduler for a fixed number of steps

Parameters

steps

Time in steps (in scheduler units).

temu_runForTime()

TEMU_API void temu_runForTime

(

double

secs

)

Run the current scheduler for a fixed time

Parameters

secs	Time in simulated seconds

temu_schedulerGetAccumulatedTime()

TEMU_API uint64_t temu_schedulerGetAccumulatedTime

(

)

Experimental function to get the accumulated nanoseconds for the scheduler.

To enable sampling the Scheduler-object's measureTime property must be set.

Returns

Accumulated nanoseconds of which temu_run* functions have run.

temu_schedulerGetAffinity()

TEMU_API int64_t temu_schedulerGetAffinity

(

unsigned

threadId

)

Experimental function to get the thread affinity for the scheduler.

Parameters

threadId

Thread ID starting with 0 to the number of threads set for the scheduler.

Returns

Affinity value, -1 implies not set. Other values indicate HOST CPUID.

temu_schedulerGetSyncTime()

TEMU_API uint64_t temu_schedulerGetSyncTime

(

unsigned

threadId

)

Experimental function to get the accumulated nanoseconds for the scheduler synchronization.

To enable sampling, the Scheduler-object's measureTime property must be set.

Returns

Accumulated nanoseconds of which synchronisation code was run.

temu_schedulerGetWaitTime()

TEMU_API uint64_t temu_schedulerGetWaitTime

(

unsigned

threadId

)

Experimental function to get the accumulated nanoseconds for the scheduler barrier waits.

The wait time, includes both the actual barrier and the synchronization time.

So the true wait time is the wait - sync time.

To enable sampling, the Scheduler-object's measureTime property must be set.

Returns

Accumulated nanoseconds of which the wait was run.

temu_schedulerSetAffinity()

TEMU_API void temu_schedulerSetAffinity	(	unsigned	threadId,
		int	hostCore
	)

Experimental function to set thread affinity for the scheduler.

The function should be called before setting the number of threads, as threads automatically set the affinity if the hostCore is zero or above.

Parameters

threadId	Thread ID starting with 0 to the number of threads set for the scheduler.
hostCore	Host core id to bind thread to. Negative to not set affintity.

temu_serializeOnNotification()

TEMU_API void temu_serializeOnNotification	(	temu_Object *	notificationSource,
		const char *	notificationName,
		double	seconds
	)

Serialize execution for some time when notification is triggered

Parameters

notificationSource	Object emitting notification.
notificationName	Name of notification to intercept.
seconds	Number of seconds (simulated time, for which to serialize execution).

temu_step()

TEMU_API void temu_step	(	temu_TimeSource *	cpu,
		int	steps
	)

Step a processor in the current scheduler

Note that, the other processors may run if the step exceeds the quanta. The step function currently runs processors in sequence, it is not running processors in parallel. This means that stepping is always deterministic.

Parameters

cpu	The processor to step
steps	The number of steps or instructions to execute

temu_stop()

TEMU_API void temu_stop

(

)

Stop the current scheduler

The function signals the scheduler to stop, and then waits until the scheduler is in the stopped state.
