Cpu.h File Reference

#include "temu-c/Support/Attributes.h"
#include <stdint.h>

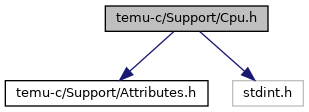

Include dependency graph for Cpu.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef void(*	temu_SparcAsrHandler) (void *Cpu, uint32_t Instr)
typedef void(*	temu_SafeCb) (void *)

Functions
TEMU_API uint64_t	temu_cpuGetFreq (void *Cpu)
TEMU_API void	temu_cpuSetPc (void *Cpu, uint64_t Pc)
TEMU_API uint64_t	temu_cpuGetPc (void *Cpu)
TEMU_API void	temu_cpuReset (void *Cpu, int ResetType)
TEMU_API uint64_t	temu_cpuRun (void *Cpu, uint64_t Cycles)
TEMU_API uint64_t	temu_cpuStep (void *Cpu, uint64_t Steps)
TEMU_API int	temu_cpuTranslateAddress (void *Cpu, uint64_t Va, uint32_t flags, uint64_t *physAddressResult)
TEMU_API int	temu_cpuTranslateAddressWithRootPointer (void *cpu, uint64_t va, uint32_t flags, uint64_t *physAddressResult, uint64_t pageTableRoot)
TEMU_API uint64_t	temu_cpuGetReg (void *Cpu, unsigned Reg)
TEMU_API void	temu_cpuSetReg (void *Cpu, unsigned Reg, uint64_t Value)
TEMU_API float	temu_cpuGetFpr32 (void *Cpu, unsigned Reg)
TEMU_API uint32_t	temu_cpuGetFpr32Bits (void *Cpu, unsigned Reg)
TEMU_API void	temu_cpuSetFpr32 (void *Cpu, unsigned Reg, float Value)
TEMU_API void	temu_cpuSetFpr32Bits (void *Cpu, unsigned Reg, uint32_t Value)
TEMU_API double	temu_cpuGetFpr64 (void *Cpu, unsigned Reg)
TEMU_API uint64_t	temu_cpuGetFpr64Bits (void *Cpu, unsigned Reg)
TEMU_API void	temu_cpuSetFpr64 (void *Cpu, unsigned Reg, double Value)
TEMU_API void	temu_cpuSetFpr64Bits (void *Cpu, unsigned Reg, uint64_t Value)
TEMU_API void	temu_cpuEnableTraps (void *Cpu)
TEMU_API void	temu_cpuDisableTraps (void *Cpu)
TEMU_API void	temu_cpuRaiseTrap (void *Cpu, int Trap, unsigned Flags)
TEMU_API int	temu_sparcGetWindowCount (void *Cpu)
TEMU_API uint32_t	temu_sparcGetWindowedReg (void *Cpu, int Window, unsigned Reg)
TEMU_API void	temu_sparcSetWindowedReg (void *Cpu, int Window, unsigned Reg, uint32_t Value)
TEMU_API void	temu_sparcSetY (void *Cpu, uint64_t Value)
TEMU_API uint64_t	temu_sparcGetY (void *Cpu)
TEMU_API void	temu_sparcSetAsr (void *Cpu, unsigned Reg, uint64_t Value)
TEMU_API uint64_t	temu_sparcGetAsr (void *Cpu, unsigned Reg)
TEMU_API void	temu_sparcSetAsrWriter (void *Cpu, unsigned Asr, temu_SparcAsrHandler Handler)
TEMU_API void	temu_sparcSetAsrReader (void *Cpu, unsigned Asr, temu_SparcAsrHandler Handler)
TEMU_API void	temu_sparcSetPsr (void *Cpu, uint32_t Value)
TEMU_API uint32_t	temu_sparcGetPsr (void *Cpu)
TEMU_API void	temu_sparcSetTbr (void *Cpu, uint32_t Value)
TEMU_API uint32_t	temu_sparcGetTbr (void *Cpu)
TEMU_API void	temu_sparcSetWim (void *Cpu, uint32_t Value)
TEMU_API uint32_t	temu_sparcGetWim (void *Cpu)
TEMU_API void	temu_sparcSetNPc (void *Cpu, uint32_t Value)
TEMU_API uint32_t	temu_sparcGetNPc (void *Cpu)
TEMU_API void	temu_armSetAPSR (void *Cpu, uint32_t Value)
TEMU_API uint32_t	temu_armGetAPSR (void *Cpu)
TEMU_API void	temu_armSetFPSCR (void *Cpu, uint32_t Value)
TEMU_API uint32_t	temu_armGetFPSCR (void *Cpu)
TEMU_API void	temu_armSetFPEXC (void *Cpu, uint32_t Value)
TEMU_API uint32_t	temu_armGetFPEXC (void *Cpu)
TEMU_API void	temu_armSetFPINST (void *Cpu, int Idx, uint32_t Value)
TEMU_API uint32_t	temu_armGetFPINST (void *Cpu, int Idx)
TEMU_API unsigned	temu_armGetExecMode (void *Cpu)
TEMU_API void	temu_armSetExecMode (void *Cpu, unsigned Mode)
TEMU_API void	temu_ppcSetCrReg (void *Cpu, uint32_t Value)
TEMU_API uint32_t	temu_ppcGetCrReg (void *Cpu)
TEMU_API void	temu_ppcSetXerReg (void *Cpu, uint32_t Value)
TEMU_API uint32_t	temu_ppcGetXerReg (void *Cpu)
TEMU_API void	temu_ppcSetMsrReg (void *Cpu, uint64_t Value)
TEMU_API uint64_t	temu_ppcGetMsrReg (void *Cpu)
TEMU_API void	temu_ppcSetReserveAddress (void *Cpu, uint64_t reserveAddress)
TEMU_API uint64_t	temu_ppcGetReserveAddress (void *Cpu)
TEMU_API void	temu_ppcClearAddressReservation (void *Cpu)
TEMU_API int	temu_ppcIsReservationBitSet (void *Cpu)
TEMU_API void	temu_ppcSetCtrReg (void *Cpu, uint32_t Value)
TEMU_API uint32_t	temu_ppcGetCtrReg (void *Cpu)
TEMU_API void	temu_ppcSetFpscrReg (void *Cpu, uint32_t Value)
TEMU_API uint32_t	temu_ppcGetFpscrReg (void *Cpu)
TEMU_API void	temu_ppcSetLrReg (void *Cpu, uint64_t Value)
TEMU_API uint64_t	temu_ppcGetLrReg (void *Cpu)
TEMU_API void	temu_cpuSetSpr (void *Cpu, unsigned RegId, uint64_t Value)
TEMU_API uint64_t	temu_cpuGetSpr (void *Cpu, unsigned RegId)
TEMU_API void *	temu_cpuGetMachine (void *Cpu)
TEMU_API void	temu_machineReset (void *Machine, int ResetType)
TEMU_API uint64_t	temu_machineRun (void *Machine, uint64_t NanoSecs)
TEMU_API void	temu_postCallback (void *Obj, temu_SafeCb Cb, void *Arg)
TEMU_API uint64_t	temu_cpuGetStat (void *Obj, int Stat)
TEMU_API void	temu_cpuResetStat (void *Obj, int Stat)

Detailed Description

Wrappers functions for the CPU interfaces.

The functions declared in this file exists for convenience purposes. They will in general look up the relevant interface by name via a double map lookup.

The functions here provide an easy way invoke functions in the CpuIface without having to query for the interface and then calling the function.

If the emulator is integrated in a simulator, the recommended approach is to first construct the system, and then query relevant interfaces, caching them as needed. Note that system configurations should not normally change after the construction phase, so any cached object-interface pairs will be stable.

Warning

A general rule is that the functions defined here calls abort in-case the interface cannot be found for the relevant object.

Typedef Documentation

temu_SafeCb

typedef void(* temu_SafeCb) (void *)

temu_SparcAsrHandler

typedef void(* temu_SparcAsrHandler) (void *Cpu, uint32_t Instr)

Function Documentation

temu_armGetAPSR()

TEMU_API uint32_t temu_armGetAPSR

(

void *

Cpu

)

Get the ARM processor state register

Parameters

Cpu	ARM CPU pointer

Returns

APSR value

temu_armGetExecMode()

TEMU_API unsigned temu_armGetExecMode

(

void *

Cpu

)

Get the ARM execution mode

Parameters

Cpu	ARM CPU pointer

Returns

Execution mode

temu_armGetFPEXC()

TEMU_API uint32_t temu_armGetFPEXC

(

void *

Cpu

)

Get the ARM FPEXC register

Parameters

Cpu	ARM CPU pointer

Returns

FPEXC value

temu_armGetFPINST()

TEMU_API uint32_t temu_armGetFPINST	(	void *	Cpu,
		int	Idx
	)

Get the ARM FPINST register

Parameters

Cpu	ARM CPU pointer
Idx	FPINST register number

Returns

FPINST value

temu_armGetFPSCR()

TEMU_API uint32_t temu_armGetFPSCR

(

void *

Cpu

)

Get the ARM FPSCR register

Parameters

Cpu	ARM CPU pointer

Returns

FPSCR value

temu_armSetAPSR()

TEMU_API void temu_armSetAPSR	(	void *	Cpu,
		uint32_t	Value
	)

Set the ARM processor state register

Parameters

Cpu	ARM CPU pointer
Value	Value to set the APSR to

temu_armSetExecMode()

TEMU_API void temu_armSetExecMode	(	void *	Cpu,
		unsigned	Mode
	)

Set the ARM execution mode

Parameters

Cpu	ARM CPU pointer
Mode	Execution mode

temu_armSetFPEXC()

TEMU_API void temu_armSetFPEXC	(	void *	Cpu,
		uint32_t	Value
	)

Set the ARM FPEXC register

Parameters

Cpu	ARM CPU pointer
Value	FPEXC value

temu_armSetFPINST()

TEMU_API void temu_armSetFPINST	(	void *	Cpu,
		int	Idx,
		uint32_t	Value
	)

Set the ARM FPINST register

Parameters

Cpu	ARM CPU pointer
Idx	FPINST register number
Value	FPINST value

temu_armSetFPSCR()

TEMU_API void temu_armSetFPSCR	(	void *	Cpu,
		uint32_t	Value
	)

Set the ARM FPSCR register

Parameters

Cpu	ARM CPU pointer
Value	FPSCR value

temu_cpuDisableTraps()

TEMU_API void temu_cpuDisableTraps

(

void *

Cpu

)

Disable traps on processor

Parameters

Cpu	CPU pointer

temu_cpuEnableTraps()

TEMU_API void temu_cpuEnableTraps

(

void *

Cpu

)

Enable traps on processor

Parameters

Cpu	CPU pointer

temu_cpuGetFpr32()

TEMU_API float temu_cpuGetFpr32	(	void *	Cpu,
		unsigned	Reg
	)

Get a 32 bit floating point register

Parameters

Cpu	CPU pointer
Reg	FPU register number

Returns

Host float with the content of the FPU register

temu_cpuGetFpr32Bits()

TEMU_API uint32_t temu_cpuGetFpr32Bits	(	void *	Cpu,
		unsigned	Reg
	)

Get a 32 bit floating point register

Parameters

Cpu	CPU pointer
Reg	FPU register number

Returns

Floating point register contents

temu_cpuGetFpr64()

TEMU_API double temu_cpuGetFpr64	(	void *	Cpu,
		unsigned	Reg
	)

Get 64 bit floating point register as double

Parameters

Cpu	CPU pointer
Reg	FPU register number

Returns

FPU register value

temu_cpuGetFpr64Bits()

TEMU_API uint64_t temu_cpuGetFpr64Bits	(	void *	Cpu,
		unsigned	Reg
	)

Get 64 bit floating point register contents

Parameters

Cpu	CPU pointer
Reg	FPU register number

Returns

FPU register value

temu_cpuGetFreq()

TEMU_API uint64_t temu_cpuGetFreq

(

void *

Cpu

)

Get the clock frequency for the CPU

Warning

In case the Cpu does not implement the CpuIface the program will abort. Do not use this function in performance critical code!!!

Parameters

Cpu	The CPU object

Returns

The configured clock frequency in Hz.

temu_cpuGetMachine()

TEMU_API void* temu_cpuGetMachine

(

void *

Cpu

)

Get the Machine for a given CPU

Parameters

Cpu	Pointer to the CPU object

Returns

Pointer to the machine object

temu_cpuGetPc()

TEMU_API uint64_t temu_cpuGetPc

(

void *

Cpu

)

Get the program counter

The program counter will be returned.

Warning

In case the Cpu does not implement the CpuIface the program will abort. Do not use this function in performance critical code!!!

Parameters

Cpu	The CPU object

Returns

The value of the program counter register

temu_cpuGetReg()

TEMU_API uint64_t temu_cpuGetReg	(	void *	Cpu,
		unsigned	Reg
	)

Gets the register in the processor

Parameters

Cpu	CPU pointer
Reg	Register number

Returns

Register value

temu_cpuGetSpr()

TEMU_API uint64_t temu_cpuGetSpr	(	void *	Cpu,
		unsigned	RegId
	)

Get the PowerPC SPR register

Parameters

Cpu	Processor pointer
RegId	SPR register number

Returns

Value of SPR specified in RegId.

temu_cpuGetStat()

TEMU_API uint64_t temu_cpuGetStat	(	void *	Obj,
		int	Stat
	)

Get processor statistics

Parameters

Obj	Processor pointer
Stat	Statistics ID

Returns

Statistics value

temu_cpuRaiseTrap()

TEMU_API void temu_cpuRaiseTrap	(	void *	Cpu,
		int	Trap,
		unsigned	Flags
	)

Raise a trap The function simulates a trap being raised at the current PC.

Parameters

Cpu	Processor pointer
Trap	Trap ID. This is target dependent, for the SPARC this is the TT value of the trap.
Flags	set flag 1 to enable longjmp trap (this is useful in MMIO handlers to force a trap while a core is running). Set to 0 if called from outside the core or in e.g. an event handler.

temu_cpuReset()

TEMU_API void temu_cpuReset	(	void *	Cpu,
		int	ResetType
	)

Reset the processor.

Resetting the CPU will result in a reset cascade where all connected devices are also reset.

Warning

In case the Cpu does not implement the CpuIface the program will abort. Do not use this function in performance critical code!!!

Parameters

Cpu	The CPU object
ResetType	The type of reset, by convention 0 means cold reset, and 1 indicates a warm reset.

temu_cpuResetStat()

TEMU_API void temu_cpuResetStat	(	void *	Obj,
		int	Stat
	)

Clear processor statistics

Parameters

Obj	Processor pointer
Stat	Statistics ID

temu_cpuRun()

TEMU_API uint64_t temu_cpuRun	(	void *	Cpu,
		uint64_t	Cycles
	)

Run the processor for a number of cycles

The function runs the processor for a number of cycles. If you wish to run the processor with another time unit, you can compute the cycles from the clock frequency of the emulated processor.

In case the processor halts or enters idle mode and there are no pending events the function will return early.

Warning

In case the Cpu does not implement the CpuIface the program will abort. Do not use this function in performance critical code!!!

Parameters

Cpu	The CPU object
Cycles	The number of cycles to run the processor for.

Returns

The number of executed cycles.

temu_cpuSetFpr32()

TEMU_API void temu_cpuSetFpr32	(	void *	Cpu,
		unsigned	Reg,
		float	Value
	)

Set floating point register value

Parameters

Cpu	CPU pointer
Reg	Floating point register number
Value	Floating point value to set

temu_cpuSetFpr32Bits()

TEMU_API void temu_cpuSetFpr32Bits	(	void *	Cpu,
		unsigned	Reg,
		uint32_t	Value
	)

Set 32 bit floating point register value

Parameters

Cpu	CPU pointer
Reg	Floating point register number
Value	Floating point value to set

temu_cpuSetFpr64()

TEMU_API void temu_cpuSetFpr64	(	void *	Cpu,
		unsigned	Reg,
		double	Value
	)

Set FPU register value

Parameters

Cpu	CPU pointer
Reg	FPU register number
Value	Value to set to register

temu_cpuSetFpr64Bits()

TEMU_API void temu_cpuSetFpr64Bits	(	void *	Cpu,
		unsigned	Reg,
		uint64_t	Value
	)

Set FPU register value

Parameters

Cpu	CPU pointer
Reg	FPU register number
Value	Value to set to register

temu_cpuSetPc()

TEMU_API void temu_cpuSetPc	(	void *	Cpu,
		uint64_t	Pc
	)

Set the program counter

The program counter will be set to the supplied value.

Note

For targets with delay slots (SPARC, MIPS etc), the function will also set the next PC to PC + sizeof(instruction).

Warning

In case the Cpu does not implement the CpuIface the program will abort. Do not use this function in performance critical code!!!

Parameters

Cpu	The CPU object
Pc	The program counter.

temu_cpuSetReg()

TEMU_API void temu_cpuSetReg	(	void *	Cpu,
		unsigned	Reg,
		uint64_t	Value
	)

Set the register in the processor

Parameters

Cpu	CPU pointer
Reg	Register number
Value	Value to write to register

temu_cpuSetSpr()

TEMU_API void temu_cpuSetSpr	(	void *	Cpu,
		unsigned	RegId,
		uint64_t	Value
	)

Set the PowerPC SPR register

Parameters

Cpu	Processor pointer
RegId	SPR register number
Value	New SPR value

temu_cpuStep()

TEMU_API uint64_t temu_cpuStep	(	void *	Cpu,
		uint64_t	Steps
	)

Run the processor for a number of steps

This function is different from temu_cpuRun, which runs for a time. The steps here indicates instructions executed (including trapping instructions). This can be contrasted to the run function which may advance the cycle counter by more than one for an instruction (depending on the timing models).

The function may return early in case the processor halts its execution or has entered idle mode and there are no events pending.

Warning

In case the Cpu does not implement the CpuIface the program will abort. Do not use this function in performance critical code!!!

Parameters

Cpu	The CPU object
Steps	The number of steps to run the processor for.

Returns

The number of executed steps.

temu_cpuTranslateAddress()

TEMU_API int temu_cpuTranslateAddress	(	void *	Cpu,
		uint64_t	Va,
		uint32_t	flags,
		uint64_t *	physAddressResult
	)

Uses the MMU to translate the given virtual address Va to the physical address in the emulator

Parameters

Cpu	the CPU object
Va	the virtual address to be translated
flags	flags for the translation (CPU specific)
physAddressResult	the result in a uint64_t pointer

Returns

error code. 0 on success, non-zero otherwise,

temu_cpuTranslateAddressWithRootPointer()

TEMU_API int temu_cpuTranslateAddressWithRootPointer	(	void *	cpu,
		uint64_t	va,
		uint32_t	flags,
		uint64_t *	physAddressResult,
		uint64_t	pageTableRoot
	)

Uses the an explicit page table pointer to translate a virtual address to physical address.

The routine is dependent on the processor having hardware managed page tables. Hence this works e.g. for SPARC and ARM processors, but not for PowerPC.

Parameters

cpu	the CPU object
va	the virtual address to be translated
flags	flags for the translation (CPU specific)
physAddressResult	the result in a uint64_t pointer
pageTableRoot	The page table to use for the translation

Returns

error code. 0 on success, non-zero otherwise,

temu_machineReset()

TEMU_API void temu_machineReset	(	void *	Machine,
		int	ResetType
	)

Reset the Machine

Resetting the Machine will result in a reset cascade where all connected devices and processors are also reset.

Warning

In case the Machine does not implement the MachineIface the program will abort. Do not use this function in performance critical code!!!

Parameters

Machine	The Machine object
ResetType	The type of reset, by convention 0 means cold reset, and 1 indicates a warm reset.

temu_machineRun()

TEMU_API uint64_t temu_machineRun	(	void *	Machine,
		uint64_t	NanoSecs
	)

Run the machine for a number of nanoseconds

The function runs the machine and for a number of nanoseconds. This will run all the CPUs in the system.

In case a processor halts or enters idle mode, the function returns early.

Warning

In case the machine does not implement the MachineIface the program will abort. Do not use this function in performance critical code!!!

Parameters

Machine	The machine object
NanoSecs	The number of nanosecs to run each processor for.

Returns

The number of executed nanoseconds.

temu_postCallback()

TEMU_API void temu_postCallback	(	void *	Obj,
		temu_SafeCb	Cb,
		void *	Arg
	)

Post a callback in a time source

The posting will be thread-safe and the callback will be excuted by the main thread (the one calling the cpu or machine run / step functions). The main thread is the thread calling cpu run if there is only a single cpu in the system, and the thread calling machine run if there are multiple CPUs in the system.

The callback will be executed as soon as possible, when the even queue is checked for events. Which in practice mean:

• At the end of the current time quanta for multi-cpu systems.
• At regular intervals for single CPU systems (a CPU runs a null-event periodically. Note that the callback will be called as soon as either a normal or the null event is executed.

The posting of this callback is thread-safe but not async / signal safe. I.e. do not do this from signal handler or async io callbacks.

When the event is executed, it is safe to do most emulator operations, including posting of events, calling API functions, etc.

The callback must however not:

• Manipulate the object system meta state (i.e. creating or modifying classes)
• Replace signal handlers (e.g. SIGINT)
• Run or step the emulator in any way (e.g. by calling machineRun(), cpuRun() or using the CpuIface or MachineIface interfaces.

Parameters

Obj	Time source
Cb	Callback
Arg	Argument passed to callback

temu_ppcClearAddressReservation()

TEMU_API void temu_ppcClearAddressReservation

(

void *

Cpu

)

Clear the PowerPC reserve address used by lwarx and stwcx

Parameters

Cpu	Processor pointer

temu_ppcGetCrReg()

TEMU_API uint32_t temu_ppcGetCrReg

(

void *

Cpu

)

Get the PowerPC CR register

Parameters

Cpu	Processor pointer

Returns

CR value

temu_ppcGetCtrReg()

TEMU_API uint32_t temu_ppcGetCtrReg

(

void *

Cpu

)

Get the PowerPC CTR register

Parameters

Cpu	Processor pointer

Returns

The CTR value

temu_ppcGetFpscrReg()

TEMU_API uint32_t temu_ppcGetFpscrReg

(

void *

Cpu

)

Get the PowerPC FPSCR register

Parameters

Cpu	Processor pointer

Returns

The FPSCR value

temu_ppcGetLrReg()

TEMU_API uint64_t temu_ppcGetLrReg

(

void *

Cpu

)

Get the PowerPC LR register

Parameters

Cpu	Processor pointer

Returns

The LR value

temu_ppcGetMsrReg()

TEMU_API uint64_t temu_ppcGetMsrReg

(

void *

Cpu

)

Get the PowerPC MSR register

Parameters

Cpu	Processor pointer

Returns

MSR value

temu_ppcGetReserveAddress()

TEMU_API uint64_t temu_ppcGetReserveAddress

(

void *

Cpu

)

Get the PowerPC reserve address used by lwarx and stwcx

Parameters

Cpu	Processor pointer

Returns

The reserved address value

temu_ppcGetXerReg()

TEMU_API uint32_t temu_ppcGetXerReg

(

void *

Cpu

)

Get the PowerPC XER register

Parameters

Cpu	Processor pointer

Returns

XER value

temu_ppcIsReservationBitSet()

TEMU_API int temu_ppcIsReservationBitSet

(

void *

Cpu

)

Check if PowerPC reserve address is set lwarx and stwcx

Parameters

Cpu	Processor pointer

Returns

1 if reservation is set, 0 if cleared.

temu_ppcSetCrReg()

TEMU_API void temu_ppcSetCrReg	(	void *	Cpu,
		uint32_t	Value
	)

Set the PowerPC CR register

Parameters

Cpu	Processor pointer
Value	New CR value

temu_ppcSetCtrReg()

TEMU_API void temu_ppcSetCtrReg	(	void *	Cpu,
		uint32_t	Value
	)

Set the PowerPC CTR register

Parameters

Cpu	Processor pointer
Value	New CTR value

temu_ppcSetFpscrReg()

TEMU_API void temu_ppcSetFpscrReg	(	void *	Cpu,
		uint32_t	Value
	)

Set the PowerPC FPSCR register

Parameters

Cpu	Processor pointer
Value	New FPSCR value

temu_ppcSetLrReg()

TEMU_API void temu_ppcSetLrReg	(	void *	Cpu,
		uint64_t	Value
	)

Set the PowerPC LR register

Parameters

Cpu	Processor pointer
Value	New LR value

temu_ppcSetMsrReg()

TEMU_API void temu_ppcSetMsrReg	(	void *	Cpu,
		uint64_t	Value
	)

Set the PowerPC MSR register

Parameters

Cpu	Processor pointer
Value	New MSR value

temu_ppcSetReserveAddress()

TEMU_API void temu_ppcSetReserveAddress	(	void *	Cpu,
		uint64_t	reserveAddress
	)

Set the PowerPC reserve address used by lwarx and stwcx

Parameters

Cpu	Processor pointer
reserveAddress	New reserved address value

temu_ppcSetXerReg()

TEMU_API void temu_ppcSetXerReg	(	void *	Cpu,
		uint32_t	Value
	)

Set the PowerPC XER register

Parameters

Cpu	Processor pointer
Value	New XER value

temu_sparcGetAsr()

TEMU_API uint64_t temu_sparcGetAsr	(	void *	Cpu,
		unsigned	Reg
	)

Get ASR register value

Parameters

Cpu	SPARC CPU pointer
Reg	ASR register ID

Returns

ASR register value

temu_sparcGetNPc()

TEMU_API uint32_t temu_sparcGetNPc

(

void *

Cpu

)

Get the nPC value

Parameters

Cpu	SPARC CPU pointer

Returns

nPC value

temu_sparcGetPsr()

TEMU_API uint32_t temu_sparcGetPsr

(

void *

Cpu

)

Get the Processor State Register

Parameters

Cpu	SPARC CPU pointer

Returns

PSR value

temu_sparcGetTbr()

TEMU_API uint32_t temu_sparcGetTbr

(

void *

Cpu

)

Get Trap Base Register value

Parameters

Cpu	SPARC CPU pointer

Returns

TBR value

temu_sparcGetWim()

TEMU_API uint32_t temu_sparcGetWim

(

void *

Cpu

)

Get window invalidation mask register

Parameters

Cpu	SPARC CPU pointer

Returns

WIM value

temu_sparcGetWindowCount()

TEMU_API int temu_sparcGetWindowCount

(

void *

Cpu

)

Get how many register windows are supported by the CPU

Parameters

Cpu	SPARC CPU pointer

Returns

Number of register windows

temu_sparcGetWindowedReg()

TEMU_API uint32_t temu_sparcGetWindowedReg	(	void *	Cpu,
		int	Window,
		unsigned	Reg
	)

Get a windowed SPARC register

Parameters

Cpu	SPARC CPU pointer
Window	Window number (-1 for current window)
Reg	Register number within window

Returns

Register value

temu_sparcGetY()

TEMU_API uint64_t temu_sparcGetY

(

void *

Cpu

)

Get the Y register of the CPU,

Parameters

Cpu	SPARC CPU pointer

Returns

Current Y register value

temu_sparcSetAsr()

TEMU_API void temu_sparcSetAsr	(	void *	Cpu,
		unsigned	Reg,
		uint64_t	Value
	)

Set the ASR register

Parameters

Cpu	SPARC CPU pointer
Reg	ASR register ID
Value	Value to write

temu_sparcSetAsrReader()

TEMU_API void temu_sparcSetAsrReader	(	void *	Cpu,
		unsigned	Asr,
		temu_SparcAsrHandler	Handler
	)

Install the handler to be called when an ASR is read

Parameters

Cpu	SPARC CPU pointer
Asr	ASR register ID
Handler	Function to call.

temu_sparcSetAsrWriter()

TEMU_API void temu_sparcSetAsrWriter	(	void *	Cpu,
		unsigned	Asr,
		temu_SparcAsrHandler	Handler
	)

Install the handler to be called when an ASR is written

Parameters

Cpu	SPARC CPU pointer
Asr	ASR register ID
Handler	Function to call.

temu_sparcSetNPc()

TEMU_API void temu_sparcSetNPc	(	void *	Cpu,
		uint32_t	Value
	)

Set the nPC value (next program counter)

NOTE: When you use the setPC function, the NPC is also updated to PC+4. Use this to explicitly set NPC.

Parameters

Cpu	SPARC CPU pointer
Value	Value to write to NPC

temu_sparcSetPsr()

TEMU_API void temu_sparcSetPsr	(	void *	Cpu,
		uint32_t	Value
	)

Set the Processor State Register

Parameters

Cpu	SPARC CPU pointer
Value	Value to write

temu_sparcSetTbr()

TEMU_API void temu_sparcSetTbr	(	void *	Cpu,
		uint32_t	Value
	)

Set the Trap Base Register

Parameters

Cpu	SPARC CPU pointer,
Value	Value for TBR register

temu_sparcSetWim()

TEMU_API void temu_sparcSetWim	(	void *	Cpu,
		uint32_t	Value
	)

Set window invalidation mask register

Parameters

Cpu	SPARC CPU pointer
Value	value to set in WIM

temu_sparcSetWindowedReg()

TEMU_API void temu_sparcSetWindowedReg	(	void *	Cpu,
		int	Window,
		unsigned	Reg,
		uint32_t	Value
	)

Set a windowed SPARC register

Parameters

Cpu	SPARC CPU pointer
Window	Window number (-1 for current window)
Reg	Register number within window
Value	Register value

temu_sparcSetY()

TEMU_API void temu_sparcSetY	(	void *	Cpu,
		uint64_t	Value
	)

Set the Y register of the CPU,

Parameters

Cpu	SPARC CPU pointer
Value	Value to write to the Y register
