Memory.h File Reference

#include "temu-c/Support/Attributes.h"
#include "temu-c/Support/Objsys.h"
#include <stdint.h>

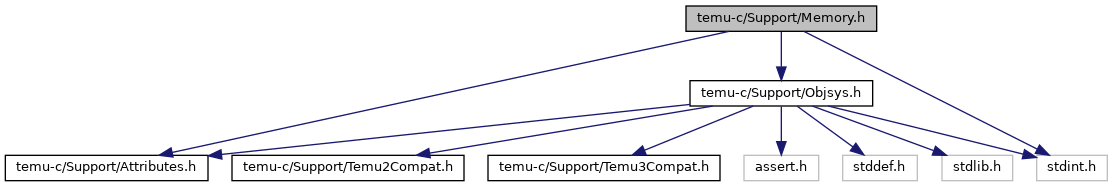

Include dependency graph for Memory.h:

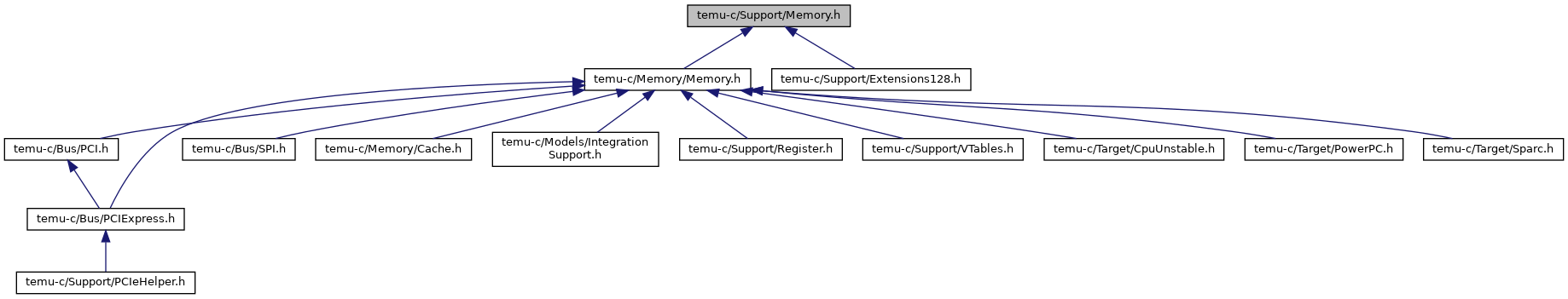

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	temu_MemorySpaceIface
struct	temu_IRInstruction
struct	temu_ExtIRInstruction
struct	temu_PDCIface

Macros
#define	TEMU_MEMORY_SPACE_IFACE_TYPE   "temu::MemorySpaceIface"
#define	TEMU_PDC_PSEUDO_UNKNOWN_INSTR   0
#define	TEMU_PDC_PSEUDO_EOP   1
#define	TEMU_PDC_PSEUDO_TRAMPOLINE   2
#define	TEMU_PDC_PSEUDO_POST_DS_0   3
#define	TEMU_PDC_PSEUDO_POST_DS_1   4
#define	TEMU_PDC_PSEUDO_ATTRIB_CHECK   5
#define	TEMU_PDC_PSEUDO_PROFILE   6
#define	TEMU_PDC_PSEUDO_PRE_TRAMPOLINE   7
#define	TEMU_PDC_PSEUDO_IDLE   8
#define	TEMU_PDC_PSEUDO_SKIP   9
#define	TEMU_PDC_PSEUDO_CALL   10
#define	TEMU_PDC_PSEUDO_CALL_AND_SKIP   11
#define	TEMU_PDC_PSEUDO_MULTIPAGE   12
#define	TEMU_PDC_PSEUDO_OP_COUNT   13
#define	TEMU_PDC_IFACE_TYPE   "PDCIface"

Typedefs
typedef enum temu_MemoryKind	temu_MemoryKind
typedef enum temu_MemoryAttr	temu_MemoryAttr
	Memory attribute enumeration. More...
typedef uint8_t	temu_MemoryAttrs
typedef struct temu_MemAccessIface	temu_MemAccessIface
typedef enum temu_MemoryStat	temu_MemoryStat
typedef struct temu_MemorySpaceIface	temu_MemorySpaceIface

Enumerations
enum	temu_MemoryKind {   teMK_RAM = 0, teMK_ROM = 1, teMK_MMIO = 2, teMK_IO = 2,   teMK_MemSpace = 4, teMK_Last = 4 }
enum	temu_MemoryAttr {   teMA_Break = 1, teMA_WatchRead = 1 << 1, teMA_WatchWrite = 1 << 2, teMA_Upset = 1 << 3,   teMA_Faulty = 1 << 4, teMA_User1 = 1 << 5, teMA_User2 = 1 << 6, teMA_User3 = 1 << 7 }
	Memory attribute enumeration. More...
enum	temu_MemoryStat {   teMS_IOReads, teMS_IOWrites, teMS_SelfModifyingCodeWrites, teMS_CodeWrites,   teMS_LocksTaken, teMS_IOReadTime, teMS_IOWriteTime, teMS_LockTime }

Functions
	TEMU_IFACE_REFERENCE_TYPE (temu_MemorySpace)
	TEMU_IFACE_REFERENCE_TYPE (temu_PDC)
TEMU_API int	temu_memoryRead (void *mem, uint8_t *buff, uint64_t addr, uint32_t size, int swap)
TEMU_API int	temu_memoryWrite (void *mem, uint64_t addr, uint8_t *buff, uint32_t size, int swap)
TEMU_API int	temu_memoryReadData (void *obj, uint64_t addr, uint8_t *buff, unsigned unitSize, uint32_t size, unsigned flags)
TEMU_API int	temu_memoryWriteData (void *obj, uint64_t addr, const uint8_t *buff, unsigned unitSize, uint32_t size, unsigned flags)
TEMU_API int	temu_memoryMap (void *Obj, uint64_t Addr, uint64_t Len, void *MemObj, uint32_t Flags)
TEMU_API int	temu_memoryMapNamedIface (void *Obj, uint64_t Addr, uint64_t Len, void *MemObj, const char *IfaceName, uint32_t Flags)
TEMU_API int	temu_memoryMapNamedIface2 (void *Obj, uint64_t Addr, uint64_t Len, void *MemObj, const char *IfaceName, unsigned Idx, uint32_t Flags)
TEMU_API void	temu_memorySetAttr (void *Obj, uint64_t Addr, uint64_t Len, temu_MemoryAttr Attr)
TEMU_API void	temu_memoryClearAttr (void *Obj, uint64_t Addr, uint64_t Len, temu_MemoryAttr Attr)
TEMU_API temu_MemoryAttrs	temu_memoryGetAttrs (void *Obj, uint64_t Addr)
TEMU_API int	temu_memoryReadPhys16 (void *Obj, uint64_t Addr, uint16_t *Word)
TEMU_API int	temu_memoryReadPhys16Little (void *Obj, uint64_t Addr, uint16_t *Word)
TEMU_API int	temu_memoryReadPhys32 (void *Obj, uint64_t Addr, uint32_t *Word)
TEMU_API int	temu_memoryReadPhys32Little (void *Obj, uint64_t Addr, uint32_t *Word)
TEMU_API int	temu_memoryWritePhys32 (void *Obj, uint64_t Addr, uint32_t Word)
TEMU_API int	temu_memoryWritePhys32Little (void *Obj, uint64_t Addr, uint32_t Word)
TEMU_API uint32_t	temu_normaliseWrite32 (uint32_t OldVal, uint32_t NewVal, int Sz, int Off)
TEMU_API uint32_t	temu_normaliseRead32 (uint32_t Value, int Sz, int Off)
TEMU_API uint16_t	temu_normaliseRead16 (uint16_t Value, int Sz, int Off)
TEMU_API uint16_t	temu_normaliseWrite16 (uint16_t OldVal, uint16_t NewVal, int Sz, int Off)
TEMU_API int	temu_memoryInstallTrampoline (void *Obj, uint64_t Addr, void(*Tramp)(void *))
TEMU_API uint64_t	temu_irToPhys (void *obj, uintptr_t ir)
TEMU_API uint64_t	temu_irToPhysForCpu (void *obj, int cpu, uintptr_t ir)

Macro Definition Documentation

TEMU_MEMORY_SPACE_IFACE_TYPE

#define TEMU_MEMORY_SPACE_IFACE_TYPE   "temu::MemorySpaceIface"

TEMU_PDC_IFACE_TYPE

#define TEMU_PDC_IFACE_TYPE   "PDCIface"

TEMU_PDC_PSEUDO_ATTRIB_CHECK

#define TEMU_PDC_PSEUDO_ATTRIB_CHECK   5

TEMU_PDC_PSEUDO_CALL

#define TEMU_PDC_PSEUDO_CALL   10

TEMU_PDC_PSEUDO_CALL_AND_SKIP

#define TEMU_PDC_PSEUDO_CALL_AND_SKIP   11

TEMU_PDC_PSEUDO_EOP

#define TEMU_PDC_PSEUDO_EOP   1

TEMU_PDC_PSEUDO_IDLE

#define TEMU_PDC_PSEUDO_IDLE   8

TEMU_PDC_PSEUDO_MULTIPAGE

#define TEMU_PDC_PSEUDO_MULTIPAGE   12

TEMU_PDC_PSEUDO_OP_COUNT

#define TEMU_PDC_PSEUDO_OP_COUNT   13

TEMU_PDC_PSEUDO_POST_DS_0

#define TEMU_PDC_PSEUDO_POST_DS_0   3

TEMU_PDC_PSEUDO_POST_DS_1

#define TEMU_PDC_PSEUDO_POST_DS_1   4

TEMU_PDC_PSEUDO_PRE_TRAMPOLINE

#define TEMU_PDC_PSEUDO_PRE_TRAMPOLINE   7

TEMU_PDC_PSEUDO_PROFILE

#define TEMU_PDC_PSEUDO_PROFILE   6

TEMU_PDC_PSEUDO_SKIP

#define TEMU_PDC_PSEUDO_SKIP   9

TEMU_PDC_PSEUDO_TRAMPOLINE

#define TEMU_PDC_PSEUDO_TRAMPOLINE   2

TEMU_PDC_PSEUDO_UNKNOWN_INSTR

#define TEMU_PDC_PSEUDO_UNKNOWN_INSTR   0

Typedef Documentation

temu_MemAccessIface

typedef struct temu_MemAccessIface temu_MemAccessIface

temu_MemoryAttr

typedef enum temu_MemoryAttr temu_MemoryAttr

Memory attribute enumeration.

The emulator provides 5 standard attributes, and 3 user defined ones. The attributes are set in the memory space (not the memory models), so it is possible to set a watch point on memory mapped devices. When an attribute is set on a page, that page will get a shadow attribute page (same size as the page), enabling attributes to be set on a per byte level.

Attributes are only checked on the address being accessed, the transaction size is not taken into account.

temu_MemoryAttrs

typedef uint8_t temu_MemoryAttrs

temu_MemoryKind

typedef enum temu_MemoryKind temu_MemoryKind

temu_MemorySpaceIface

typedef struct temu_MemorySpaceIface temu_MemorySpaceIface

temu_MemoryStat

typedef enum temu_MemoryStat temu_MemoryStat

Enumeration Type Documentation

temu_MemoryAttr

enum temu_MemoryAttr

Memory attribute enumeration.

The emulator provides 5 standard attributes, and 3 user defined ones. The attributes are set in the memory space (not the memory models), so it is possible to set a watch point on memory mapped devices. When an attribute is set on a page, that page will get a shadow attribute page (same size as the page), enabling attributes to be set on a per byte level.

Attributes are only checked on the address being accessed, the transaction size is not taken into account.

Enumerator
teMA_Break	Breakpoint set.
teMA_WatchRead	Read watchpoint set.
teMA_WatchWrite	Write watchpoint set.
teMA_Upset	Single event upset.
teMA_Faulty	Multiple event upset / uncorrectable.
teMA_User1	User definable.
teMA_User2	User definable.
teMA_User3	User definable.

temu_MemoryKind

enum temu_MemoryKind

Enumerator
teMK_RAM	Model is a RAM.
teMK_ROM	Model is a ROM.
teMK_MMIO	Alias for teMK_IO
teMK_IO	Model is a normal IO device.
teMK_MemSpace	Model is a memory space.
teMK_Last	DO NOT USE.

temu_MemoryStat

enum temu_MemoryStat

Enumerator
teMS_IOReads
teMS_IOWrites
teMS_SelfModifyingCodeWrites
teMS_CodeWrites
teMS_LocksTaken
teMS_IOReadTime
teMS_IOWriteTime
teMS_LockTime

Function Documentation

TEMU_IFACE_REFERENCE_TYPE() [1/2]

TEMU_IFACE_REFERENCE_TYPE

(

temu_MemorySpace

)

TEMU_IFACE_REFERENCE_TYPE() [2/2]

TEMU_IFACE_REFERENCE_TYPE

(

temu_PDC

)

temu_irToPhys()

TEMU_API uint64_t temu_irToPhys	(	void *	obj,
		uintptr_t	ir
	)

temu_irToPhysForCpu()

TEMU_API uint64_t temu_irToPhysForCpu	(	void *	obj,
		int	cpu,
		uintptr_t	ir
	)

temu_memoryClearAttr()

TEMU_API void temu_memoryClearAttr	(	void *	Obj,
		uint64_t	Addr,
		uint64_t	Len,
		temu_MemoryAttr	Attr
	)

Clears an attribute on the given memory range

Parameters

Obj	Memory space object
Addr	Physical address of start
Len	Length of memory range
Attr	Attribute to clear

temu_memoryGetAttrs()

TEMU_API temu_MemoryAttrs temu_memoryGetAttrs	(	void *	Obj,
		uint64_t	Addr
	)

Get memory attributes for address

Parameters

Obj	Memory space
Addr	Physical addres

Returns

Memory attributes for the address

temu_memoryInstallTrampoline()

TEMU_API int temu_memoryInstallTrampoline	(	void *	Obj,
		uint64_t	Addr,
		void(*)(void *)	Tramp
	)

Install trampoline function in PDC cache

Parameters

Obj	Memory space
Addr	Physical address
Tramp	Trampoline function, takes CPU pointer as first argument.

Returns

0 on success

temu_memoryMap()

TEMU_API int temu_memoryMap	(	void *	Obj,
		uint64_t	Addr,
		uint64_t	Len,
		void *	MemObj,
		uint32_t	Flags
	)

temu_memoryMap Maps an object into a memory space. The object must have an interface named MemAccessIface, of the type defined as TEMU_MEM_ACCESS_IFACE_TYPE

Parameters

Obj	is the memory space object
Addr	the physical address
Len	the length in bytes
MemObj	is the object that is mapped into the memory space it needs to be of a class that follows the rules above
Flags	are flags that are copied into the memory transaction object's flag field when a transaction reaches an object

Returns

Zero on success

temu_memoryMapNamedIface()

TEMU_API int temu_memoryMapNamedIface	(	void *	Obj,
		uint64_t	Addr,
		uint64_t	Len,
		void *	MemObj,
		const char *	IfaceName,
		uint32_t	Flags
	)

temu_memoryMapNamedIface Maps an object into a memory space using the named memory access interface. The interface named by IfaceName must be of the type TEMU_MEM_ACCESS_IFACE_TYPE

Parameters

Obj	is the memory space object
Addr	the physical address
Len	the length in bytes
MemObj	is the object that is mapped into the memory space it needs to be of a class that follows the rules above
IfaceName	Name of the memory access interface
Flags	are flags that are copied into the memory transaction object's flag field when a transaction reaches an object

Returns

Zero on success

temu_memoryMapNamedIface2()

TEMU_API int temu_memoryMapNamedIface2	(	void *	Obj,
		uint64_t	Addr,
		uint64_t	Len,
		void *	MemObj,
		const char *	IfaceName,
		unsigned	Idx,
		uint32_t	Flags
	)

temu_memoryRead()

TEMU_API int temu_memoryRead	(	void *	mem,
		uint8_t *	buff,
		uint64_t	addr,
		uint32_t	size,
		int	swap
	)

Read block of data via memory block transfer interfaces

Parameters

mem	Pointer to memory space object
buff	The buffer to which the memory should be stored
addr	The address of the memory block to be read
size	The size to be read
swap	setting this to 0 indicates reading a byte array, 1 a uint16 array, 2 a uint32 array and 3 a uint64 array

Returns

Negative on failures. Other values indicate success. The convention is to return the number of bytes read which should be == size.

temu_memoryReadData()

TEMU_API int temu_memoryReadData	(	void *	obj,
		uint64_t	addr,
		uint8_t *	buff,
		unsigned	unitSize,
		uint32_t	size,
		unsigned	flags
	)

Read block of data via large memory transactions.

Parameters

obj	Memory space object
addr	Physical address inside memory space
buff	Data buffer
unitSize	Log size of transaction unit size (0 = u8, 1 = u16, 2 = u32, 3 = u64)
size	Number of units to transfer
flags	Memory transaction flags (e.g. TEMU_MT_LITTLE_ENDIAN)

Returns

Negative on failures. Other values indicate success.

temu_memoryReadPhys16()

TEMU_API int temu_memoryReadPhys16	(	void *	Obj,
		uint64_t	Addr,
		uint16_t *	Word
	)

Issue a big endian memory read transaction (without initiator)

Parameters

Obj	Memory space
Addr	Physical address
Word	16 bit word that is read

Returns

0 on success, other values imply failure and will not update the word.

temu_memoryReadPhys16Little()

TEMU_API int temu_memoryReadPhys16Little	(	void *	Obj,
		uint64_t	Addr,
		uint16_t *	Word
	)

Issue a little endian memory read transaction (without initiator)

Parameters

Obj	Memory space
Addr	Physical address
Word	16 bit word that is read

Returns

0 on success, other values imply failure and will not update the word.

temu_memoryReadPhys32()

TEMU_API int temu_memoryReadPhys32	(	void *	Obj,
		uint64_t	Addr,
		uint32_t *	Word
	)

Issue a big endian memory read transaction (without initiator)

Parameters

Obj	Memory space
Addr	Physical address
Word	32 bit word that is read

Returns

0 on success, other values imply failure and will not update the word.

temu_memoryReadPhys32Little()

TEMU_API int temu_memoryReadPhys32Little	(	void *	Obj,
		uint64_t	Addr,
		uint32_t *	Word
	)

Issue a little endian memory read transaction (without initiator)

Parameters

Obj	Memory space
Addr	Physical address
Word	32 bit word that is read

Returns

0 on success, other values imply failure and will not update the word.

temu_memorySetAttr()

TEMU_API void temu_memorySetAttr	(	void *	Obj,
		uint64_t	Addr,
		uint64_t	Len,
		temu_MemoryAttr	Attr
	)

Sets an attribute on the given memory range

Parameters

Obj	Memory space object
Addr	Physical address of start
Len	Length of memory range
Attr	Attribute to set

temu_memoryWrite()

TEMU_API int temu_memoryWrite	(	void *	mem,
		uint64_t	addr,
		uint8_t *	buff,
		uint32_t	size,
		int	swap
	)

Write block of data via memory block transfer interfaces

Parameters

mem	Pointer to memory space object
buff	The buffer to which the memory should be stored
addr	The address, at which the write should be done
size	The size to be read
swap	Negative on failures. Other values indicate success.

Returns

Negative on failure. Other values indicate success. The convention is to return the number of bytes written, which should be == size.

temu_memoryWriteData()

TEMU_API int temu_memoryWriteData	(	void *	obj,
		uint64_t	addr,
		const uint8_t *	buff,
		unsigned	unitSize,
		uint32_t	size,
		unsigned	flags
	)

Write block of data via large memory transactions.

Parameters

obj	Memory space object
addr	Physical address inside memory space
buff	Data buffer
unitSize	Log size of transaction unit size (0 = u8, 1 = u16, 2 = u32, 3 = u64)
size	Number of units to transfer
flags	Memory transaction flags (e.g. TEMU_MT_LITTLE_ENDIAN)

Returns

Negative on failures. Other values indicate success.

temu_memoryWritePhys32()

TEMU_API int temu_memoryWritePhys32	(	void *	Obj,
		uint64_t	Addr,
		uint32_t	Word
	)

Issue a big endian memory write transaction (without initiator)

Parameters

Obj	Memory space
Addr	Physical address
Word	32 bit word to write

Returns

0 on success

temu_memoryWritePhys32Little()

TEMU_API int temu_memoryWritePhys32Little	(	void *	Obj,
		uint64_t	Addr,
		uint32_t	Word
	)

Issue a little endian memory write transaction (without initiator)

Parameters

Obj	Memory space
Addr	Physical address
Word	32 bit word to write

Returns

0 on success

temu_normaliseRead16()

TEMU_API uint16_t temu_normaliseRead16	(	uint16_t	Value,
		int	Sz,
		int	Off
	)

Normalise a value for reads where only 16 bit transactions are supported by the device model, but the target is allowed to read non-16 bit quantities.

Given a 32 bit register value, the function extracts the bits from it that was actually requested.

Parameters

Value	Register value
Sz	Size in log number of bytes (0 or 1)
Off	Offset in bytes within the 32 bit word of the transaction (0 or 2)

temu_normaliseRead32()

TEMU_API uint32_t temu_normaliseRead32	(	uint32_t	Value,
		int	Sz,
		int	Off
	)

Normalise a value for reads where only 32 bit transactions are supported by the device model, but the target is allowed to read non-32 bit quantities.

Given a 32 bit register value, the function extracts the bits from it that was actually requested.

Parameters

Value	Register value
Sz	Size in log number of bytes (0, 1, or 2)
Off	Offset in bytes within the 32 bit word of the transaction (0-3)

temu_normaliseWrite16()

TEMU_API uint16_t temu_normaliseWrite16	(	uint16_t	OldVal,
		uint16_t	NewVal,
		int	Sz,
		int	Off
	)

Normalise a value for writes where only 16 bit transactions are supported by the device model, but the target is allowed to write non-16 bit quantity. The function mixes the old register value with the new one based on the size and offset parameter. The problem exists because the memory access interface has a value entry, which always ends up in the lower bits, so if we write to the higher bits in in a 16 bit register, then by just forwarding the the value as is to the write handler, will result in a write of the lower bits and a clear of the upper bits (for a store unsigned).

Thus a normalisation is neded where we mix the written word with the old bits. So for transaction size of 8, and an offset of8, the resulting word is (old & 0x00ff) | (new << 8)

Parameters

OldVal	Old regiseter value.
NewVal	Content in memory transaction (new value).
Sz	Size in log number of bytes
Off	Offset in bytes within the 16 bit word of the transaction.

temu_normaliseWrite32()

TEMU_API uint32_t temu_normaliseWrite32	(	uint32_t	OldVal,
		uint32_t	NewVal,
		int	Sz,
		int	Off
	)

Normalise a value for writes where only 32 bit transactions are supported by the device model, but the target is allowed to write non-32 bit quantity. The function mixes the old register value with the new one based on the size and offset parameter. The problem exists because the memory access interface has a value entry, which always ends up in the lower bits, so if we write to the higher bits in in a 32 bit register, then by just forwarding the the value as is to the write handler, will result in a write of the lower bits and a clear of the upper bits (for a store unsigned).

Thus a normalisation is needed where we mix the written word with the old bits. So for transaction size of 16, and an offset of 16, the resulting word is (old & 0x0000ffff) | (new << 16)

Parameters

OldVal	Old regiseter value.
NewVal	Content in memory transaction (new value).
Sz	Size in log number of bytes
Off	Offset in bytes within the 32 bit word of the transaction.
