temu_SpwRmapDecodedPacket Struct Reference

#include </builds/termade/temu/temu/include/temu-c/Bus/Spacewire.h>

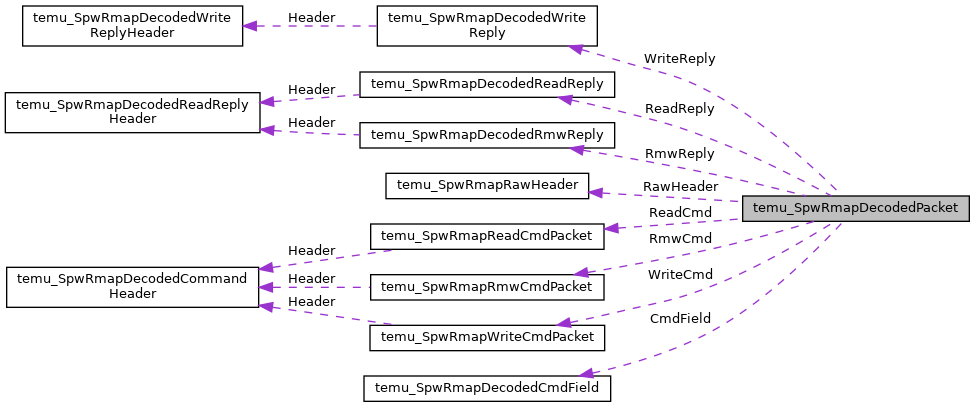

Collaboration diagram for temu_SpwRmapDecodedPacket:

Data Fields
uint32_t	TotalSize
	Total size of the packet received. More...
temu_SpwRmapPacketType	PacketType
	The packet type as identified by bits [7,6] in instruction. More...
temu_SpwRmapDecodedCmdField	CmdField
	The command field, bits [5,4,3,2] in instruction. More...
temu_SpwRmapRawHeader	RawHeader
	Raw header data access. More...
temu_SpwRmapDecodedPacketType	DecodedPacketType
union {
temu_SpwRmapReadCmdPacket   ReadCmd
temu_SpwRmapWriteCmdPacket   WriteCmd
temu_SpwRmapRmwCmdPacket   RmwCmd
temu_SpwRmapDecodedReadReply   ReadReply
temu_SpwRmapDecodedWriteReply   WriteReply
temu_SpwRmapDecodedRmwReply   RmwReply
};

Field Documentation

@1

union { ... }

CmdField

temu_SpwRmapDecodedCmdField temu_SpwRmapDecodedPacket::CmdField

The command field, bits [5,4,3,2] in instruction.

DecodedPacketType

temu_SpwRmapDecodedPacketType temu_SpwRmapDecodedPacket::DecodedPacketType

PacketType

temu_SpwRmapPacketType temu_SpwRmapDecodedPacket::PacketType

The packet type as identified by bits [7,6] in instruction.

RawHeader

temu_SpwRmapRawHeader temu_SpwRmapDecodedPacket::RawHeader

Raw header data access.

ReadCmd

temu_SpwRmapReadCmdPacket temu_SpwRmapDecodedPacket::ReadCmd

ReadReply

temu_SpwRmapDecodedReadReply temu_SpwRmapDecodedPacket::ReadReply

RmwCmd

temu_SpwRmapRmwCmdPacket temu_SpwRmapDecodedPacket::RmwCmd

RmwReply

temu_SpwRmapDecodedRmwReply temu_SpwRmapDecodedPacket::RmwReply

TotalSize

uint32_t temu_SpwRmapDecodedPacket::TotalSize

Total size of the packet received.

WriteCmd

temu_SpwRmapWriteCmdPacket temu_SpwRmapDecodedPacket::WriteCmd

WriteReply

temu_SpwRmapDecodedWriteReply temu_SpwRmapDecodedPacket::WriteReply

---

The documentation for this struct was generated from the following file:

• temu-c/Bus/Spacewire.h
