Component.h File Reference

#include "temu-c/Support/Attributes.h"
#include "temu-c/Support/Objsys.h"

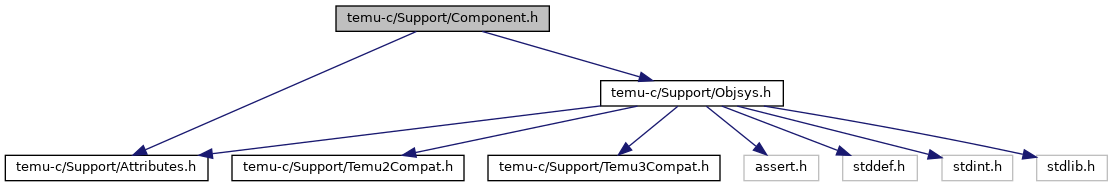

Include dependency graph for Component.h:

Go to the source code of this file.

Macros
#define	TEMU_COMPONENT_DEFINED

Typedefs
typedef struct temu_Component	temu_Component

Functions
TEMU_API temu_Class *	temu_registerComponent (const char *CompClass, temu_ObjectCreateFunc Create, temu_ObjectDisposeFunc Dispose)
TEMU_API temu_Component_ *	temu_componentCreate (const char *Name)
TEMU_API void	temu_componentDispose (void *Comp)
TEMU_API void	temu_componentAddDelegateIface (temu_Component_ *Comp, const char *Name, temu_IfaceRef Iface)
TEMU_API void	temu_componentAddDelegateProp (temu_Component_ *Comp, const char *Name, temu_Object_ *Obj, const char *PropName)
TEMU_API temu_IfaceRef	temu_componentGetDelegateIface (temu_Component *Comp, const char *Name)
TEMU_API temu_PropName	temu_componentGetDelegateProp (temu_Component *Comp, const char *Name)
TEMU_API temu_Object_ *	temu_createComponentObject (temu_Component_ *Comp, const char *Class, const temu_CreateArg *Args, const char *ObjNameFmt,...)
TEMU_API temu_Object_ *	temu_componentGetObject (temu_Component_ *Comp, const char *Name)
TEMU_API void	temu_foreachComponent (void(*Func)(temu_Component *, void *), void *Arg)
TEMU_API void	temu_foreachRootComponent (void(*Func)(temu_Component *, void *), void *Arg)

Macro Definition Documentation

TEMU_COMPONENT_DEFINED

#define TEMU_COMPONENT_DEFINED

Typedef Documentation

temu_Component

typedef struct temu_Component temu_Component

Function Documentation

temu_componentAddDelegateIface()

TEMU_API void temu_componentAddDelegateIface	(	temu_Component_ *	Comp,
		const char *	Name,
		temu_IfaceRef	Iface
	)

Add delegate interface to component

Delegate interfaces are interfaces in objects internal in the component. It is possible to use the connect function to attach directly to a component delegated interface (although, in practice the connection is done to the internal object's interface).

Note that delegate interface do not support interface arrays, and can only expose a single interface instance at present.

Parameters

Comp	the component to add the delegate interface to.
Name	name of the delegate interface
Iface	Interface reference which the delegated interface is resolved to

temu_componentAddDelegateProp()

TEMU_API void temu_componentAddDelegateProp	(	temu_Component_ *	Comp,
		const char *	Name,
		temu_Object_ *	Obj,
		const char *	PropName
	)

Add delegate property to component

Delegate property are properties in objects internal in the component. It is possible to use the connect function to connect from a delegated property directly using the component instead of the underlying object.

Parameters

Comp	the component to add the delegate interface to.
Name	name of the delegate property
Obj	Object to which the property resolves to.
PropName	Name of property in Obj

temu_componentCreate()

TEMU_API temu_Component_* temu_componentCreate

(

const char *

Name

)

Allocate a component object.

The component create shall be called in the component constructor/create function (the create function passed to the registerComponent function). It will allocate an opaque component object with the relevant name.

The returned component is what the component constructor should return.

Parameters

Name	Name of component

Returns

Component pointer

temu_componentDispose()

TEMU_API void temu_componentDispose

(

void *

Comp

)

Deallocate a component object

The component dispose shall be called by the component destructor/dispose function registered in the registerComponent call.

Note that a component is seen as owning all the objects created with createComponentObject, and subsequently, all objects created will be recursively deleted when deleting the component.

Parameters

Comp	Component to dispose.

temu_componentGetDelegateIface()

TEMU_API temu_IfaceRef temu_componentGetDelegateIface	(	temu_Component *	Comp,
		const char *	Name
	)

Query the component for a delegated interface

Normally this function is not needed for the end user, however some usecases can be seen for exposing this. It returns the IfaceRef that has been added as a delegate interface. The main use is to redelegate delegated interfaces in a component of components.

Parameters

Comp	The component to query the IfaceRef from
Name	Name of the interface reference.

Returns

Interface reference associated with Name, if none is found, iref type will be teTY_Invalid.

temu_componentGetDelegateProp()

TEMU_API temu_PropName temu_componentGetDelegateProp	(	temu_Component *	Comp,
		const char *	Name
	)

Query the compontent for a delegated property

Normally this should not be called by the user. But is useful in case the user constructs components of components in which case a component can redelegate delegated properties.

Parameters

Comp	The componten to query
Name	Name of delegated property

Returns

Object name pair with the target object and property name.

temu_componentGetObject()

TEMU_API temu_Object_* temu_componentGetObject	(	temu_Component_ *	Comp,
		const char *	Name
	)

Get named object in component

Parameters

Comp	Component pointer
Name	String without the component prefix (i.e. local name)

Returns

NULL if the object is not a member in the component

temu_createComponentObject()

TEMU_API temu_Object_* temu_createComponentObject	(	temu_Component_ *	Comp,
		const char *	Class,
		const temu_CreateArg *	Args,
		const char *	ObjNameFmt,
			...
	)

Create an object in a component.

This function works as the temu_createObject, except that the object created is inserted in the component.

The function is indended to be used in the component constructor.

Object names are uniqued using the objnamefmt paramters and following varargs. Plus, that the name of the component itself is prefixed as '[compname]-'.

Parameters

Comp	The component under which the object is to be created.
Class	class of the created object
Args	NULL terminated array of create arguments for the constructor.
ObjNameFmt	Name of created object, but it allows for printf style string names, simplifying the creation of multiple objects of the same type.

Returns

Pointer to created object.

temu_foreachComponent()

TEMU_API void temu_foreachComponent	(	void(*)(temu_Component *, void *)	Func,
		void *	Arg
	)

Iterate over all components and call a function on them

Parameters

Func	The function to be called on each component, with the signature Func)(temu_Component,void*)
Arg	The second argument to be passed to the function, for passing context

temu_foreachRootComponent()

TEMU_API void temu_foreachRootComponent	(	void(*)(temu_Component *, void *)	Func,
		void *	Arg
	)

Iterate over all root components and call a function on them

Parameters

Func	The function to be called on each component, with the signature Func)(temu_Component,void*)
Arg	The second argument to be passed to the function, for passing context

temu_registerComponent()

TEMU_API temu_Class* temu_registerComponent	(	const char *	CompClass,
		temu_ObjectCreateFunc	Create,
		temu_ObjectDisposeFunc	Dispose
	)

Register a new component class in

Parameters

CompClass	Name of the component to be registered
Create	The constructor function that allocates the component
Dispose	The destructor function

Returns

Pointer to the new class
