Objsys.h File Reference

#include "temu-c/Support/Attributes.h"
#include "temu-c/Support/Temu2Compat.h"
#include "temu-c/Support/Temu3Compat.h"
#include <assert.h>
#include <stddef.h>
#include <stdint.h>
#include <stdlib.h>

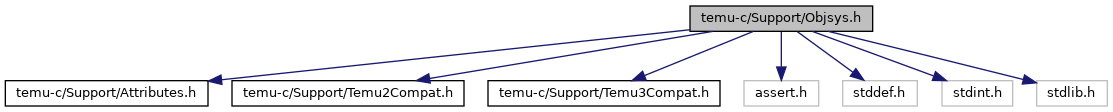

Include dependency graph for Objsys.h:

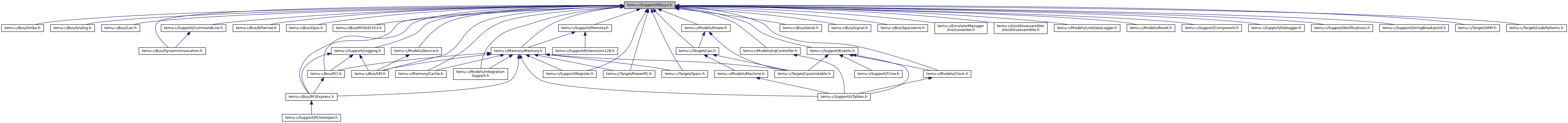

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	temu_Buff
struct	temu_Object
struct	temu_IfaceRef
struct	temu_IfaceRefArray
struct	temu_Propref
struct	temu_PropName
struct	temu_Vector
struct	temu_List
struct	temu_Propval
struct	temu_CreateArg
struct	temu_Class
struct	temu_PropAccessor
struct	temu_PropInfo
struct	temu_ObjectIface

Macros
#define	TEMU_PLUGIN_INIT   TEMU_API void temu_pluginInit(void)
#define	TEMU_NO_WRAP
#define	TEMU_BUFF_DEFINED
#define	TEMU_COMPONENT_DEFINED
#define	TEMU_IFACE_REFERENCE_TYPE(N)
#define	TEMU_DYN_ARRAY_TYPE(T, P)
#define	TEMU_NULL_ARG
#define	PROP_ASSERT(p, t)
#define	PROP_VAL_INITIALIZER(typ, suffix, typetag, valtag)
#define	TEMU_QUAL_NONE   0
#define	TEMU_QUAL_CPU   1
#define	TEMU_QUAL_MACHINE   2
#define	TEMU_QUAL_MEMORY   4
#define	TEMU_QUAL_COMPONENT   5
#define	TEMU_QUAL_CLOCK   6
#define	TEMU_QUAL_USER   65536
#define	TEMU_OBJECT_IFACE_TYPE   "ObjectIface"

Typedefs
typedef struct temu_Component	temu_Component
typedef struct temu_Class	temu_Class
typedef void	temu_MetaIface
typedef struct temu_TimeSource	temu_TimeSource
typedef struct temu_Object	temu_Object
typedef struct temu_IfaceRef	temu_IfaceRef
typedef struct temu_IfaceRefArray	temu_IfaceRefArray
typedef enum temu_Type	temu_Type
typedef struct temu_Propref	temu_Propref
typedef void	temu_Dict
typedef void	temu_ListNode
typedef struct temu_Propval	temu_Propval
typedef struct temu_CreateArg	temu_CreateArg
typedef void *(*	temu_ObjectCreateFunc) (const char *Name, int Argc, const temu_CreateArg *Argv)
typedef void(*	temu_ObjectDisposeFunc) (void *)
typedef void(*	temu_PropWriter) (void *Obj, temu_Propval Pv, int Idx)
typedef temu_Propval(*	temu_PropReader) (void *Obj, int Idx)
typedef struct temu_PropAccessor	temu_PropAccessor
typedef void	temu_TypeObject

Enumerations
enum	temu_Type {   teTY_Invalid, teTY_Intptr, teTY_Uintptr, teTY_Float,   teTY_Double, teTY_U8, teTY_U16, teTY_U32,   teTY_U64, teTY_I8, teTY_I16, teTY_I32,   teTY_I64, teTY_Obj, teTY_InternalPtr, teTY_IfaceRef,   teTY_IfaceRefArray, teTY_String, teTY_Buffer, teTY_Dict,   teTY_Vector, teTY_List }

Functions
TEMU_API temu_IfaceRefArray	temu_ifaceRefArrayAlloc (unsigned Reserve)
TEMU_API void	temu_ifaceRefArrayPush2 (temu_IfaceRefArray *Arr TEMU_NONNULL, temu_Object_ *Obj TEMU_NONNULL, void *Iface TEMU_NONNULL)
TEMU_API void	temu_ifaceRefArrayPush (temu_IfaceRefArray *Arr TEMU_NONNULL, temu_IfaceRef Iface)
TEMU_API unsigned	temu_ifaceRefArraySize (temu_IfaceRefArray *Arr)
TEMU_API temu_IfaceRef	temu_ifaceRefArrayGet (temu_IfaceRefArray *Arr, unsigned idx)
TEMU_API void	temu_ifaceRefArrayDispose (temu_IfaceRefArray *Arr)
TEMU_API temu_Dict *	temu_dictCreate (void)
TEMU_API void	temu_dictDispose (temu_Dict *Dict)
TEMU_API int	temu_dictInsertValue (temu_Dict *Dict, const char *Name, temu_Propval Val)
TEMU_API temu_Propval	temu_dictGetValue (temu_Dict *Dict, const char *Name)
TEMU_API int	temu_dictRemoveValue (temu_Dict *Dict, const char *Name)
const TEMU_API char *	temu_dictGetNextKey (temu_Dict *Dict, const char *Key)
TEMU_API temu_Vector	temu_vecCreate (temu_Type Typ)
TEMU_API void	temu_vecDispose (temu_Vector *Vec)
TEMU_API void	temu_vecPush (temu_Vector *Vec, temu_Propval Val)
TEMU_API void *	temu_vecGetData (temu_Vector *Vec)
TEMU_API size_t	temu_vecGetSize (temu_Vector *Vec)
TEMU_API temu_List	temu_listCreate (temu_Type Typ)
TEMU_API void	temu_listDispose (temu_List *List)
TEMU_API void	temu_listAppend (temu_List *List, temu_Propval Val)
TEMU_API void	temu_listPrepend (temu_List *List, temu_Propval Val)
TEMU_API temu_Propval	temu_listRemoveHead (temu_List *List)
TEMU_API temu_Propval	temu_listRemoveTail (temu_List *List)
TEMU_API temu_ListNode *	temu_listGetHead (temu_List *List)
TEMU_API temu_ListNode *	temu_listGetTail (temu_List *List)
TEMU_API temu_ListNode *	temu_listGetNext (temu_ListNode *Node)
TEMU_API temu_ListNode *	temu_listGetPrev (temu_ListNode *Node)
TEMU_API temu_Propval	temu_listNodeGetVal (temu_ListNode *Node)
TEMU_API temu_Propref	temu_getPropref (const temu_Object_ *Obj, const char *PropName)
TEMU_API temu_PropAccessor	temu_getPropAccessor (temu_Object *Obj, const char *PropName, int PropIdx)
TEMU_API temu_PropName	temu_getPropName (const temu_Object_ *Obj, const char *PropName)
TEMU_API int	temu_getPropLength (const temu_Object_ *Obj, const char *PropName)
TEMU_API int	temu_getPropDynLength (const temu_Object_ *Obj, const char *PropName)
TEMU_API temu_Type	temu_getPropType (const temu_Object_ *Obj, const char *PropName)
TEMU_API int	temu_objectHasProp (const temu_Object_ *Obj, const char *PropName)
TEMU_API int	temu_objectHasIface (const temu_Object_ *Obj, const char *IfaceName)
TEMU_API int	temu_isNumber (temu_Propval Pv)
TEMU_API int	temu_isReal (temu_Propval Pv)
TEMU_API int	temu_isDiscrete (temu_Propval Pv)
TEMU_API int	temu_isUnsigned (temu_Propval Pv)
TEMU_API int	temu_isSigned (temu_Propval Pv)
TEMU_API int	temu_isString (temu_Propval Pv)
TEMU_API int64_t	temu_asInteger (temu_Propval Pv)
TEMU_API uint64_t	temu_asUnsigned (temu_Propval Pv)
TEMU_API double	temu_asDouble (temu_Propval Pv)
TEMU_API temu_Propval	temu_getValue (temu_Object_ *Obj, const char *PropName, int Idx) TEMU_NO_WRAP
TEMU_API uint8_t	temu_getValueU8 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API uint16_t	temu_getValueU16 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API uint32_t	temu_getValueU32 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API uint64_t	temu_getValueU64 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API int8_t	temu_getValueI8 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API int16_t	temu_getValueI16 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API int32_t	temu_getValueI32 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API int64_t	temu_getValueI64 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API temu_Propval	temu_readValue (temu_Object_ *Obj, const char *PropName, int Idx) TEMU_NO_WRAP
TEMU_API uint8_t	temu_readValueU8 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API uint16_t	temu_readValueU16 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API uint32_t	temu_readValueU32 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API uint64_t	temu_readValueU64 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API int8_t	temu_readValueI8 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API int16_t	temu_readValueI16 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API int32_t	temu_readValueI32 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API int64_t	temu_readValueI64 (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API void	temu_setValue (temu_Object_ *Obj, const char *PropName, temu_Propval Val, int Idx) TEMU_NO_WRAP
TEMU_API void	temu_setValueU8 (temu_Object_ *Obj, const char *PropName, uint8_t Val, int Idx)
TEMU_API void	temu_setValueU16 (temu_Object_ *Obj, const char *PropName, uint16_t Val, int Idx)
TEMU_API void	temu_setValueU32 (temu_Object_ *Obj, const char *PropName, uint32_t Val, int Idx)
TEMU_API void	temu_setValueU64 (temu_Object_ *Obj, const char *PropName, uint64_t Val, int Idx)
TEMU_API void	temu_setValueI8 (temu_Object_ *Obj, const char *PropName, int8_t Val, int Idx)
TEMU_API void	temu_setValueI16 (temu_Object_ *Obj, const char *PropName, int16_t Val, int Idx)
TEMU_API void	temu_setValueI32 (temu_Object_ *Obj, const char *PropName, int32_t Val, int Idx)
TEMU_API void	temu_setValueI64 (temu_Object_ *Obj, const char *PropName, int64_t Val, int Idx)
TEMU_API void	temu_writeValue (temu_Object_ *Obj, const char *PropName, temu_Propval Val, int Idx) TEMU_NO_WRAP
TEMU_API void	temu_writeValueU8 (temu_Object_ *Obj, const char *PropName, uint8_t Val, int Idx)
TEMU_API void	temu_writeValueU16 (temu_Object_ *Obj, const char *PropName, uint16_t Val, int Idx)
TEMU_API void	temu_writeValueU32 (temu_Object_ *Obj, const char *PropName, uint32_t Val, int Idx)
TEMU_API void	temu_writeValueU64 (temu_Object_ *Obj, const char *PropName, uint64_t Val, int Idx)
TEMU_API void	temu_writeValueI8 (temu_Object_ *Obj, const char *PropName, int8_t Val, int Idx)
TEMU_API void	temu_writeValueI16 (temu_Object_ *Obj, const char *PropName, int16_t Val, int Idx)
TEMU_API void	temu_writeValueI32 (temu_Object_ *Obj, const char *PropName, int32_t Val, int Idx)
TEMU_API void	temu_writeValueI64 (temu_Object_ *Obj, const char *PropName, int64_t Val, int Idx)
TEMU_API void	temu_writeValueObj (temu_Object *Obj, const char *PropName, temu_Object *Val, int Idx)
TEMU_API temu_Class *	temu_registerClass (const char *ClsName, temu_ObjectCreateFunc Create, temu_ObjectDisposeFunc Dispose)
TEMU_API void	temu_addProperty (temu_Class *Cls, const char *PropName, int Offset, temu_Type Typ, int Count, temu_PropWriter Wr, temu_PropReader Rd, const char *Doc)
TEMU_API void	temu_addPseudoProperty (temu_Class *Cls, const char *PropName, temu_Type Typ, int Count, temu_PropWriter Wr, temu_PropReader Rd, temu_PropWriter Set, temu_PropReader Get, const char *Doc)
TEMU_API int	temu_addLoggingCategory (temu_Class *Cls, unsigned CategoryId, const char *Category)
const TEMU_API char *	temu_getLoggingCategory (temu_Class *Cls, unsigned CategoryId)
TEMU_API int	temu_isPseudoProperty (temu_Object_ *Obj, const char *PropName)
TEMU_API int	temu_isNormalProperty (temu_Object_ *Obj, const char *PropName)
TEMU_API void	temu_requireInterface (temu_Class *Cls, const char *PropName, const char *IfaceType)
TEMU_API void	temu_addInterfaceReference (temu_Class *Cls, const char *PropName, int Offset, const char *TypeName, int Count, unsigned Flags, temu_PropWriter Wr, temu_PropReader Rd, const char *Doc)
TEMU_API void	temu_addPseudoInterfaceReference (temu_Class *Cls, const char *PropName, const char *TypeName, int Count, unsigned Flags, temu_PropWriter Wr, temu_PropReader Rd, temu_PropWriter Set, temu_PropReader Get, const char *Doc)
TEMU_API int	temu_addPort (temu_Class *C, const char *IfaceRefName, const char *IfaceName, const char *Doc)
TEMU_API void	temu_addInterface (temu_Class *Cls, const char *IfaceName, const char *IfaceType, void *Iface, int DeprecatedParam, const char *Doc)
TEMU_API void *	temu_getInterface (temu_Object_ *Obj, const char *IfaceName, int Idx)
TEMU_API temu_IfaceRef	temu_getInterfaceRef (temu_Object_ *Obj, const char *IfaceName, int Idx)
const TEMU_API char *	temu_getInterfaceName (temu_Object *Obj, void *Iface)
TEMU_API void	temu_addInterfaceArray (temu_Class *Cls, const char *IfaceName, const char *IfaceType, void *Iface, size_t Count, size_t Size, const char *Doc)
TEMU_API int	temu_setVTable (temu_Class *Cls, void *VTable)
TEMU_API void *	temu_getVTableForClass (temu_Class *Cls)
TEMU_API void *	temu_getVTable (const temu_Object_ *Obj)
TEMU_API void	temu_setTimeSource (temu_Object_ *Obj, temu_TimeSource_ *TS)
TEMU_API int	temu_isQualifiedAs (const temu_Object_ *Obj, unsigned Qualifier)
TEMU_API int	temu_isCpu (const temu_Object_ *Obj)
TEMU_API int	temu_isMachine (const temu_Object_ *Obj)
TEMU_API int	temu_isMemory (const temu_Object_ *Obj)
TEMU_API int	temu_isComponent (const temu_Object_ *Obj)
TEMU_API void	temu_qualifyAsCpu (temu_Class *Cls)
TEMU_API void	temu_qualifyAsMachine (temu_Class *Cls)
TEMU_API void	temu_qualifyAsMemory (temu_Class *Cls)
TEMU_API void	temu_qualifyAs (temu_Class *Cls, unsigned Qualifier)
TEMU_API void	temu_objsysClear (void)
TEMU_API void	temu_objsysClearObjects (void)
TEMU_API temu_Object_ *	temu_createObject (const char *ClsName, const char *ObjName, const temu_CreateArg *Args)
TEMU_API void	temu_disposeObject (temu_Object_ *Obj)
TEMU_API temu_Class *	temu_classForName (const char *ClsName)
const TEMU_API char *	temu_nameForClass (temu_Class *Cls)
TEMU_API temu_Class *	temu_classForObject (const temu_Object_ *Obj)
TEMU_API int	temu_classHasCommand (const temu_Class *Cls, const char *CmdName)
TEMU_API int	temu_propInfoForClass (temu_Class *Cls, unsigned PIIndex, unsigned PICount, temu_PropInfo *PI)
TEMU_API temu_Object_ *	temu_objectForName (const char *Name)
const TEMU_API char *	temu_nameForObject (const temu_Object_ *Obj)
const TEMU_API char *	temu_nameForInterface (const temu_Object_ *Obj, const void *Iface)
TEMU_API int	temu_indexForInterface (const temu_Object_ *Obj, const void *Iface)
const TEMU_API char *	temu_typenameForInterface (const temu_Object_ *Obj, const void *Iface)
TEMU_API int	temu_loadPlugin (const char *PluginName)
TEMU_API int	temu_loadPluginGlobal (const char *PluginName)
TEMU_API void	temu_pluginPathAppend (const char *Path)
TEMU_API void	temu_pluginPathRemove (const char *Path)
TEMU_API void	temu_pluginPathPrint (void)
const TEMU_API char *	temu_typeToName (temu_Type Typ)
TEMU_API temu_Object_ **	temu_getProcessors (void)
TEMU_API size_t	temu_getProcessorCount (void)
TEMU_API temu_Component **	temu_getComponents (void)
TEMU_API size_t	temu_getComponentCount (void)
TEMU_API int	temu_connect (temu_Object_ *A, const char *PropName, temu_Object_ *B, const char *IfaceName)
TEMU_API int	temu_serialiseJSON (const char *FileName)
TEMU_API int	temu_deserialiseJSON (const char *FileName)
TEMU_API int	temu_inlineDeserialiseJSON (const char *FileName)
TEMU_API void	temu_serialiseProp (void *Ctxt, const char *Name, temu_Type Typ, int Count, void *Data)
TEMU_API void	temu_deserialiseProp (void *Ctxt, temu_Object_ *Obj, const char *Name)
TEMU_API int	temu_snapshotGetLength (void *Ctxt, const char *Name)
TEMU_API int	temu_checkpointGetLength (void *Ctxt, const char *Name)
TEMU_API temu_Propval	temu_snapshotGetValue (void *Ctxt, const char *Name, int Idx)
TEMU_API temu_Propval	temu_checkpointGetValue (void *Ctxt, const char *Name, int Idx)
TEMU_API int	temu_checkSanity (int Report)
TEMU_API int	temu_generateObjectGraph (const char *Path, int Display)
TEMU_API int	temu_isValidObjectName (const char *Name)
TEMU_API int	temu_isValidClassName (const char *Name)
TEMU_API int	temu_isValidInterfaceName (const char *Name)
TEMU_API int	temu_isValidPropertyName (const char *Name)
TEMU_API void	temu_foreachObject (void(*Func)(temu_Object_ *, void *), void *Arg)
TEMU_API void	temu_foreachClass (void(*Func)(temu_Class *, void *), void *Arg)
TEMU_API void	temu_foreachProcessor (void(*Func)(temu_Object_ *, void *), void *Arg)
TEMU_API void	temu_foreachProperty (temu_Class *C, void(*Func)(temu_Class *, const char *, void *), void *Arg)
TEMU_API void	temu_foreachInterface (temu_Class *C, void(*Func)(temu_Class *, const char *, void *), void *Arg)
TEMU_API void *	temu_registerInterfaceType (const char *Name)
TEMU_API void *	temu_getInterfaceType (const char *Name)
TEMU_API int	temu_addScalarProperty (temu_Class *Cls, const char *Name, int offset, temu_Type T, const char *Doc)
TEMU_API int	temu_addArrayProperty (temu_Class *Cls, const char *Name, int offset, temu_Type T, int NumElems, const char *Doc)
TEMU_API int	temu_addScalarPseudoProperty (temu_Class *Cls, const char *Name, temu_Type T, const char *Doc)
TEMU_API int	temu_addArrayPseudoProperty (temu_Class *Cls, const char *Name, temu_Type T, int NumElems, const char *Doc)
TEMU_API int	temu_writeProp (temu_Object_ *Obj, const char *Name, int idx, temu_Propval *PV)
TEMU_API temu_Propval	temu_readProp (temu_Object_ *Obj, const char *Name, int idx)
TEMU_API uint64_t	temu_getValueUnsigned (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API int64_t	temu_getValueSigned (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API double	temu_getValueDouble (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API uint64_t	temu_readValueUnsigned (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API int64_t	temu_readValueSigned (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API double	temu_readValueDouble (temu_Object_ *Obj, const char *PropName, int Idx)
TEMU_API void	temu_setValueUnsigned (temu_Object_ *Obj, const char *PropName, uint64_t Val, int Idx)
TEMU_API void	temu_setValueSigned (temu_Object_ *Obj, const char *PropName, int64_t Val, int Idx)
TEMU_API void	temu_setValueDouble (temu_Object_ *Obj, const char *PropName, double Val, int Idx)
TEMU_API void	temu_writeValueUnsigned (temu_Object_ *Obj, const char *PropName, uint64_t Val, int Idx)
TEMU_API void	temu_writeValueSigned (temu_Object_ *Obj, const char *PropName, int64_t Val, int Idx)
TEMU_API void	temu_writeValueDouble (temu_Object_ *Obj, const char *PropName, double Val, int Idx)
TEMU_API temu_Propval	temu_signedPropval (temu_Type T, int64_t I)
TEMU_API temu_Propval	temu_unsignedPropval (temu_Type T, uint64_t U)
TEMU_API temu_Propval	temu_floatingPointPropval (temu_Type T, double V)
TEMU_API int	temu_objectHasCmd (const temu_Object_ *Obj, const char *CmdName)

Macro Definition Documentation

PROP_ASSERT

#define PROP_ASSERT	(		p,
			t
	)

PROP_VAL_INITIALIZER

#define PROP_VAL_INITIALIZER	(		typ,
			suffix,
			typetag,
			valtag
	)

Value:

  static inline temu_Propval temu_makeProp##suffix(typ val)                    \
  {                                                                            \
    temu_Propval pv;                                                           \
    pv.Typ = typetag;                                                          \
    pv.valtag = val;                                                           \
    return pv;                                                                 \
  }                                                                            \
  static inline typ temu_propValue##suffix(temu_Propval pv)                    \
  {                                                                            \
    PROP_ASSERT(pv.Typ, typetag);                                              \
    typ val = pv.valtag;                                                       \
    return val;                                                                \
  }

TEMU_BUFF_DEFINED

#define TEMU_BUFF_DEFINED

TEMU_COMPONENT_DEFINED

#define TEMU_COMPONENT_DEFINED

TEMU_DYN_ARRAY_TYPE

#define TEMU_DYN_ARRAY_TYPE	(		T,
			P
	)

TEMU_IFACE_REFERENCE_TYPE

#define TEMU_IFACE_REFERENCE_TYPE

(

N

)

Easy way of declaring typed interface references and interface reference arrays.

TEMU_NO_WRAP

#define TEMU_NO_WRAP

TEMU_NULL_ARG

#define TEMU_NULL_ARG

Value:

  {                                                                            \
    NULL,                                                                      \
    {                                                                          \
      teTY_Invalid                                                             \
    }                                                                          \
  }

TEMU_OBJECT_IFACE_TYPE

#define TEMU_OBJECT_IFACE_TYPE   "ObjectIface"

TEMU_PLUGIN_INIT

#define TEMU_PLUGIN_INIT   TEMU_API void temu_pluginInit(void)

TEMU_QUAL_CLOCK

#define TEMU_QUAL_CLOCK   6

TEMU_QUAL_COMPONENT

#define TEMU_QUAL_COMPONENT   5

TEMU_QUAL_CPU

#define TEMU_QUAL_CPU   1

TEMU_QUAL_MACHINE

#define TEMU_QUAL_MACHINE   2

TEMU_QUAL_MEMORY

#define TEMU_QUAL_MEMORY   4

TEMU_QUAL_NONE

#define TEMU_QUAL_NONE   0

TEMU_QUAL_USER

#define TEMU_QUAL_USER   65536

Typedef Documentation

temu_Class

typedef struct temu_Class temu_Class

temu_Component

typedef struct temu_Component temu_Component

temu_CreateArg

typedef struct temu_CreateArg temu_CreateArg

Generic constructor argument

The object constructors takes an array of key/value pairs as parameters. The values are passed using either:

• Registered argument in the Class.new command method.
• Explicitly to temu_createObject().
• Args parameter to object-create global command.

The object create function would typically scan through the array, finding relevant matching keys.

temu_Dict

typedef void temu_Dict

temu_IfaceRef

typedef struct temu_IfaceRef temu_IfaceRef

Generic interface

In TEMU interfaces are referred to using an object / interface pointer pair. The object is in general passed as the first parameter to functions in the interface. This type provides a generic interface reference where the interface pointer itself is type erased.

While the type is rarely used by itself, it is commonly returned by the TEMU API. To convert to / from this type from / to typed interface references, it is possible to either memcopy or cast field by field.

temu_IfaceRefArray

typedef struct temu_IfaceRefArray temu_IfaceRefArray

Dynamic interface reference array

In some cases, the number of objects we know about is unknown. To solve that TEMU provides a vector like type.

Note

It is not the intention that the fields in the array are manipulated directly. Instead, use the temu_ifaceRefArray* functions.

temu_ListNode

typedef void temu_ListNode

temu_MetaIface

typedef void temu_MetaIface

temu_Object

typedef struct temu_Object temu_Object

Root object type for all TEMU objects.

The TEMU object system is used for defining models in TEMU. All models must derive from temu_Object.

Inheritance in C is done by placing a temu_Object field as the first field in the derived struct.

TEMU by convention use the name Super for the parent field name.

The type contains a UserData void pointer that can be used by for example simulator integrators. The UserData field can be written by the user. The field is guaranteed to not be modified by the TEMU runtime.

Note

While the convention in C is safe, in {cpp} it is the responsibility of the user to ensure that the derived type is a standard layout type.

temu_ObjectCreateFunc

typedef void*(* temu_ObjectCreateFunc) (const char *Name, int Argc, const temu_CreateArg *Argv)

temu_ObjectDisposeFunc

typedef void(* temu_ObjectDisposeFunc) (void *)

temu_PropAccessor

typedef struct temu_PropAccessor temu_PropAccessor

! Generic property accessor

This struct serves as a generic accessor for properties. The intention for this is to be able to cache property accessors, without having to disambiguate between properties and pseudo properties.

The accessor is queried by the temu_getPropAccessor function, and is then used by calling the functions:

• readProp
• writeProp
• getProp
• setProp

Depending on whether read, write, get or set semantics is needed.

temu_PropReader

typedef temu_Propval(* temu_PropReader) (void *Obj, int Idx)

A prop reader function is provided when properties are registered, it is responsible for reading the property when temu_readValue is called. The function can be used to introduce side-effects on reads unlike the getValue which will never have side-effects and only returns the raw value.

temu_Propref

typedef struct temu_Propref temu_Propref

Typed property reference.

The property reference contains a type tag and a raw pointer to the property.

temu_Propval

typedef struct temu_Propval temu_Propval

Generic property value.

As properties can be of any normal type, the propval struct provides a sum type/tagged union which contain both the type tag and the property value.

temu_PropWriter

typedef void(* temu_PropWriter) (void *Obj, temu_Propval Pv, int Idx)

A prop writer function is provided when properties are registered, it is responsible for writing the property when temu_writeValue is called. The function can be used to introduce side-effects on writes unlike the setValue which will never have side-effects and only sets the raw value.

temu_TimeSource

typedef struct temu_TimeSource temu_TimeSource

temu_Type

typedef enum temu_Type temu_Type

Type tag

The TEMU object system uses type tags to track which type is registered and in use at runtime. Type tags are used in for example the property registration functions.

temu_TypeObject

typedef void temu_TypeObject

Enumeration Type Documentation

temu_Type

enum temu_Type

Type tag

The TEMU object system uses type tags to track which type is registered and in use at runtime. Type tags are used in for example the property registration functions.

Enumerator
teTY_Invalid	Invalid value 0.
teTY_Intptr	Pointer sized signed integer (intptr_t)
teTY_Uintptr	Pointer sized unsigned integer (uintptr_t)
teTY_Float	Single precision floating point value.
teTY_Double	Double precision floating point value.
teTY_U8	8-bit fixed width unsigned integer
teTY_U16	16-bit fixed width unsigned integer
teTY_U32	32-bit fixed width unsigned integer
teTY_U64	64-bit fixed width unsigned integer
teTY_I8	8-bit fixed width signed integer
teTY_I16	16-bit fixed width signed integer
teTY_I32	32-bit fixed width signed integer
teTY_I64	64-bit fixed width signed integer
teTY_Obj	Pointer to temu_Object.
teTY_InternalPtr	Internal pointer.
teTY_IfaceRef	Interface reference.
teTY_IfaceRefArray	Dynamic object/interface array.
teTY_String	C-string, useful for serialization.
teTY_Buffer	Buffer (see Buffer.h)
teTY_Dict	Dictionary.
teTY_Vector	Vector (i.e. dynamic array)
teTY_List	List.

Function Documentation

temu_addArrayProperty()

TEMU_API int temu_addArrayProperty	(	temu_Class *	Cls,
		const char *	Name,
		int	offset,
		temu_Type	T,
		int	NumElems,
		const char *	Doc
	)

Add a fixed length array property without setters / getters

Parameters

Cls	Class pointer
Name	Name of property
offset	Offset from object pointer
T	Property type
NumElems	Array length
Doc	Documentation string

Returns

0 if the property was added

temu_addArrayPseudoProperty()

TEMU_API int temu_addArrayPseudoProperty	(	temu_Class *	Cls,
		const char *	Name,
		temu_Type	T,
		int	NumElems,
		const char *	Doc
	)

Add an array pseudo-property

Parameters

Cls	Class pointer
Name	Name of property
T	Property type
NumElems	Array length
Doc	Documentation string

Returns

0 if the property was added

temu_addInterface()

TEMU_API void temu_addInterface	(	temu_Class *	Cls,
		const char *	IfaceName,
		const char *	IfaceType,
		void *	Iface,
		int	DeprecatedParam,
		const char *	Doc
	)

Register interface with the named class.

Parameters

Cls_name	Name of class to add interface to
Ifacename	Interface name
IfaceType	Interface type
Iface	Pointer to the interface structure.

temu_addInterfaceArray()

TEMU_API void temu_addInterfaceArray	(	temu_Class *	Cls,
		const char *	IfaceName,
		const char *	IfaceType,
		void *	Iface,
		size_t	Count,
		size_t	Size,
		const char *	Doc
	)

Add an array of interfaces to a class

Interface arrays are especially useful when e.g. multiple "network ports" are available, although they can be added manually with distinct names (e.g. uartaiface, uartbiface, etc), the interface array registration allows for the addition of several interfaces at once. Individual interfaces are then referred to with normal index syntax, e.g. obj:uartiface[0].

Parameters

Cls	Class pointer
IfaceName	name of interface
IfaceType	name of interface type
Iface	Pointer to array of interfaces
Count	Number of interfaces in array
Size	Size of one interface (e.g. sizeof(uartiface[0]))
Doc	Documentation comment for interface

temu_addInterfaceReference()

TEMU_API void temu_addInterfaceReference	(	temu_Class *	Cls,
		const char *	PropName,
		int	Offset,
		const char *	TypeName,
		int	Count,
		unsigned	Flags,
		temu_PropWriter	Wr,
		temu_PropReader	Rd,
		const char *	Doc
	)

Add a interface reference property.

Parameters

Cls	The class object
PropName	Name of the property to add.
Offset	Offset in bytes from the start of the class to the value the property refers to.
TypeName	Interface type name.
Count	Set to > 1 to indicate that the property is an array, the value is the length of the array.
Flags	Flags for property, 1 implies property is mandatory to set.
Wr	Property write function. This function can have side-effects.
Rd	Property read function. This function can have side-effects.
Doc	Documentation string

temu_addLoggingCategory()

TEMU_API int temu_addLoggingCategory	(	temu_Class *	Cls,
		unsigned	CategoryId,
		const char *	Category
	)

temu_addLogginCategory adds a logging category to the class

Parameters

Cls	the class
CategoryId	The category id. Valid range is [8,16)
Category	The category name

Returns

0 for success, 1 indicates failure.

temu_addPort()

TEMU_API int temu_addPort	(	temu_Class *	C,
		const char *	IfaceRefName,
		const char *	IfaceName,
		const char *	Doc
	)

Make interface reference property and an interface inverses

A port is a bidirectional interface. Thus, if an interface reference is connected to another objects interface, the remote object will be told to issue a reverse connection. This is convenient as it simplifies device connection during system configuration and construction. That is, instead of calling the connect two times with the inverse connections explicitly, only one call is needed.

Parameters

C	The class object
IfaceRefName	the name of the interface reference property
IfaceName	Name of interface that is the inverse of the interface ref property.
Doc	Documentation string

Returns

0 on success, non-zero otherwise.

temu_addProperty()

TEMU_API void temu_addProperty	(	temu_Class *	Cls,
		const char *	PropName,
		int	Offset,
		temu_Type	Typ,
		int	Count,
		temu_PropWriter	Wr,
		temu_PropReader	Rd,
		const char *	Doc
	)

Add a property to a class.

Parameters

Cls	The class object
PropName	Name of the property to add.
Offset	Offset in bytes from the start of the class to the value the property refers to.
Typ	Type of the property.
Count	Set to > 1 to indicate that the property is an array, the value is the length of the array.
Wr	Property write function. This function can have side-effects.
Rd	Property read function. This function can have side-effects.
Doc	Documentation string

temu_addPseudoInterfaceReference()

TEMU_API void temu_addPseudoInterfaceReference	(	temu_Class *	Cls,
		const char *	PropName,
		const char *	TypeName,
		int	Count,
		unsigned	Flags,
		temu_PropWriter	Wr,
		temu_PropReader	Rd,
		temu_PropWriter	Set,
		temu_PropReader	Get,
		const char *	Doc
	)

Add a interface reference property.

Parameters

Cls	The class object
PropName	Name of the property to add.
TypeName	Interface type name.
Count	Set to > 1 to indicate that the property is an array, the value is the length of the array.
Flags	Flags for property, 1 implies property is mandatory to set.
Wr	Property write function. This function can have side-effects.
Rd	Property read function. This function can have side-effects.
Set	Property set function. Non-semantic.
Get	Property get function. Non-semantic.
Doc	Documentation string

temu_addPseudoProperty()

TEMU_API void temu_addPseudoProperty	(	temu_Class *	Cls,
		const char *	PropName,
		temu_Type	Typ,
		int	Count,
		temu_PropWriter	Wr,
		temu_PropReader	Rd,
		temu_PropWriter	Set,
		temu_PropReader	Get,
		const char *	Doc
	)

Add property without storage

A pseudo property does not have backing storage (and therefore no offset). They exist to provide access to computed properties.

Pseudo properties also work fine with C++ types with non-standard layout.

Pseudo properties are snapshotted if the set and get functions are implemented. The set and get should implement read and write without semantic effect. That is, if the property is a register, then the read and write should have the effect of an actual register access (including event rescheduling etc), while for a get/set, only the value of the register is modified, event restoration is done differently.

Parameters

Cls	class to add pseudo property to
PropName	name of pseudo property
Typ	Type of property
Count	number of elements, 1 for a scalar.
Wr	Property write function (semantic effect)
Rd	Property read function (semantic effect)
Set	Property set function (non-semantic)
Get	Property get function (non-semantic)
Doc	Documentation string

temu_addScalarProperty()

TEMU_API int temu_addScalarProperty	(	temu_Class *	Cls,
		const char *	Name,
		int	offset,
		temu_Type	T,
		const char *	Doc
	)

Add a scalar (one element) property without setters / getters

Parameters

Cls	Class pointer
Name	Name of property
offset	Offset from object pointer
T	Property type
Doc	Documentation string

Returns

0 if the property was added

temu_addScalarPseudoProperty()

TEMU_API int temu_addScalarPseudoProperty	(	temu_Class *	Cls,
		const char *	Name,
		temu_Type	T,
		const char *	Doc
	)

Add a scalar (one element) pseudo-property

Parameters

Cls	Class pointer
Name	Name of property
T	Property type
Doc	Documentation string

Returns

0 if the property was added

temu_asDouble()

TEMU_API double temu_asDouble

(

temu_Propval

Pv

)

Converts the given property to double

Parameters

Pv	The property to be converted

Returns

Returns the property as an unsigned integer

temu_asInteger()

TEMU_API int64_t temu_asInteger

(

temu_Propval

Pv

)

Converts the given propery to integer

Parameters

Pv	The property to be converted

Returns

Returns the property as integer

temu_asUnsigned()

TEMU_API uint64_t temu_asUnsigned

(

temu_Propval

Pv

)

Converts the given property to unsigned integer

Parameters

Pv	The property to be converted

Returns

Returns the property as an unsigned integer

temu_checkpointGetLength()

TEMU_API int temu_checkpointGetLength	(	void *	Ctxt,
		const char *	Name
	)

Get number of entries for the serialized property

Parameters

Ctxt	Context passed to deserialise function
Name	Name of property / key in the serialized file

Returns

Length of the property in elements. Negative on error.

temu_checkpointGetValue()

TEMU_API temu_Propval temu_checkpointGetValue	(	void *	Ctxt,
		const char *	Name,
		int	Idx
	)

Get value for named snapshot value

Parameters

Ctxt	Context is passed to deserialise interface function
Name	Name of the saved value
Idx	Index of the saved value (if array)

Returns

Property value with the contents saved to the snapshot

temu_checkSanity()

TEMU_API int temu_checkSanity

(

int

Report

)

Check object system sanity.

The function traverses all objects and their properties and ensures that all (scalar) interface properties are connected. An object can override the default check by implementing the checkSanity function in the ObjectIface.

Parameters

Report

set to 1 to have the function report connectivity issues on stdout, 2 to report on stderr, and 0 to not report at all.

Returns

Returns 0 if the object system is connected. Returns non-zero if the object system is not properly connected.

temu_classForName()

TEMU_API temu_Class* temu_classForName

(

const char *

ClsName

)

Get the class pointer for the named class

Parameters

ClsName

The name of the class

Returns

Pointer to the class if found, otherwise NULL

temu_classForObject()

TEMU_API temu_Class* temu_classForObject

(

const temu_Object_ *

Obj

)

Get the class for the given object.

Parameters

Obj	Pointer to the object

Returns

Pointer to the class type object

temu_classHasCommand()

TEMU_API int temu_classHasCommand	(	const temu_Class *	Cls,
		const char *	CmdName
	)

Query whether the class has a specific command implemented

Parameters

Cls	class to query for a command.
CmdName	Command name class is expected to implement.

Returns

0 if command is not implemented by class, 1 if implemented.

temu_connect()

TEMU_API int temu_connect	(	temu_Object_ *	A,
		const char *	PropName,
		temu_Object_ *	B,
		const char *	IfaceName
	)

Connect an interface property in object A to the interface in object B. If A.PropName is an interface array, B,B:IfaceName will be appended to it. For dynamic arrays, it is pushed to the end, for static arrays, it is placed in the first null slot (unless, the indexing syntax is used in the property name).

Parameters

A	The object to connect.
PropName	The name of the property in object A
B	The object to connect to.
IfaceName	The name of the interface in object B

Returns

0 on success, otherwise non-zero

temu_createObject()

TEMU_API temu_Object_* temu_createObject	(	const char *	ClsName,
		const char *	ObjName,
		const temu_CreateArg *	Args
	)

Create object with class and name.

Parameters

ClsName	Name of class used for instantiation
ObjName	Name of object in object system
Args	Named argument pairs to pass into constructor. The list of args should be terminated by a TEMU_NULL_ARG. In case no arguments are passed, pass in NULL.

Returns

Allocated object. Result is NULL in case of: class does not exist, object already allocated with the given name, out of memory.

temu_deserialiseJSON()

TEMU_API int temu_deserialiseJSON

(

const char *

FileName

)

De-serialise the simulation state.

The function clears the whole internal object system, reads the JSON file FileName and creates all the objects.

If a class implements the ObjectIface, the (optional) deserialise procedure will be called.

Parameters

FileName

The filename that contains the JSON data

Returns

0 on success, otherwise non-zero

temu_deserialiseProp()

TEMU_API void temu_deserialiseProp	(	void *	Ctxt,
		temu_Object_ *	Obj,
		const char *	Name
	)

temu_deserialiseProp Deserialize a serialized property

Parameters

Ctxt	An opaque context, this is the same context as is passed to the deserialise interface function.
Obj	Object being deserialised
Name	The name of the property

temu_dictCreate()

TEMU_API temu_Dict* temu_dictCreate

(

void

)

Creates a dictionary object

Returns

A pointer to the dictionary object

temu_dictDispose()

TEMU_API void temu_dictDispose

(

temu_Dict *

Dict

)

Delete a dictionary object

Parameters

Dict	Pointer to the dictionary object to be deleted

temu_dictGetNextKey()

const TEMU_API char* temu_dictGetNextKey	(	temu_Dict *	Dict,
		const char *	Key
	)

Given a specific key of a dictionary, the next key is provided by this function

Parameters

Dict	The dictionary that contains the keys
Key	The key, whose next value in the dict to be provided

Returns

The key that comes after Key, or nullptr on failure

temu_dictGetValue()

TEMU_API temu_Propval temu_dictGetValue	(	temu_Dict *	Dict,
		const char *	Name
	)

Retrieve a dictionary value by name

Parameters

Dict	Pointer to the dictionary object
Name	The name associated with the value to be retrieved

Returns

The value

temu_dictInsertValue()

TEMU_API int temu_dictInsertValue	(	temu_Dict *	Dict,
		const char *	Name,
		temu_Propval	Val
	)

Inserts a name/value pair to a dictionary

Parameters

Dict	Pointer to the dictionary object
Name	The name to be inserted
Val	The value to be inserted

Returns

0 on success. Other values indicate failures (e.g. the key is already used)

temu_dictRemoveValue()

TEMU_API int temu_dictRemoveValue	(	temu_Dict *	Dict,
		const char *	Name
	)

Erase a name/value pair from a dictionary by name

Parameters

Dict	Pointer to the dictionary object
Name	The name of the pair to be removed

Returns

0 on success. Other values indicate errors (e.g. key was unavailable in the dictionary)

temu_disposeObject()

TEMU_API void temu_disposeObject

(

temu_Object_ *

Obj

)

Dispose object. The function will call the Objects dispose function.

Parameters

Obj	The object to delete.

temu_floatingPointPropval()

TEMU_API temu_Propval temu_floatingPointPropval	(	temu_Type	T,
		double	V
	)

Create a floating point propval of the given type

Parameters

T	Type ID, must be a teTY_Float or teTY_Double
V	Value

Returns

Property value with the given type and value.

temu_foreachClass()

TEMU_API void temu_foreachClass	(	void(*)(temu_Class *, void *)	Func,
		void *	Arg
	)

Call function on every class in the object system The function is called with the metaclass pointer and the argument. NOTE: This function is experimental.

Parameters

Func	Function to call
Arg	Argument passed as the last parameter to Func

temu_foreachInterface()

TEMU_API void temu_foreachInterface	(	temu_Class *	C,
		void(*)(temu_Class *, const char *, void *)	Func,
		void *	Arg
	)

Call function on every interface in a class. The function is called with the class pointer, interface name and the argument. NOTE: This function is experimental.

Parameters

C	Class to iterate properties
Func	Function to call
Arg	Argument passed as the last parameter to Func

temu_foreachObject()

TEMU_API void temu_foreachObject	(	void(*)(temu_Object_ *, void *)	Func,
		void *	Arg
	)

Call function on every object in the object system The function is called with the object pointer and the argument. NOTE: This function is experimental.

Parameters

Func	Function to call
Arg	Argument passed as the last parameter to Func

temu_foreachProcessor()

TEMU_API void temu_foreachProcessor	(	void(*)(temu_Object_ *, void *)	Func,
		void *	Arg
	)

Call function on every processor in the object system The function is called with the CPU pointer and the argument. NOTE: This function is experimental.

Parameters

Func	Function to call
Arg	Argument passed as the last parameter to Func

temu_foreachProperty()

TEMU_API void temu_foreachProperty	(	temu_Class *	C,
		void(*)(temu_Class *, const char *, void *)	Func,
		void *	Arg
	)

Call function on every property in a class. The function is called with the class pointer, property name and the argument. NOTE: This function is experimental.

Parameters

C	Class to iterate properties
Func	Function to call
Arg	Argument passed as the last parameter to Func

temu_generateObjectGraph()

TEMU_API int temu_generateObjectGraph	(	const char *	Path,
		int	Display
	)

Print the current object graph as a dot file

Pass NULL (or nullptr) to generate to stdout. And set Display to non-zero to automatically display the generated dot-file.

Parameters

Path	Destination file to write the graph to. NULL indicates stdout.
Display	If non-zero, the function will attempt to display the graph by running it through dot and .

Returns

0 if the generation was successful. Non-zero in case of failure.

temu_getComponentCount()

TEMU_API size_t temu_getComponentCount

(

void

)

temu_getComponentCount Get the number of components in the current simulation

Returns

The number of components in the current simulation

temu_getComponents()

TEMU_API temu_Component** temu_getComponents

(

void

)

temu_getComponents Get the number of components in the current simulation

Returns

An array of the pointers to the components in the current simulation, the length of the array can be obtained from temu_getComponentCount()

temu_getInterface()

TEMU_API void* temu_getInterface	(	temu_Object_ *	Obj,
		const char *	IfaceName,
		int	Idx
	)

temu_getInterfaceName()

const TEMU_API char* temu_getInterfaceName	(	temu_Object *	Obj,
		void *	Iface
	)

temu_getInterfaceName Get Interface Name of the Obj

Parameters

Obj	Pointer to the object containing the interface
Iface	Interface to be find w.r.t. Object

Returns

The name of the interface

temu_getInterfaceRef()

TEMU_API temu_IfaceRef temu_getInterfaceRef	(	temu_Object_ *	Obj,
		const char *	IfaceName,
		int	Idx
	)

Retrieve a reference to an interface identified by its name and index

Parameters

Obj	Pointer to the object containing the interface
IfaceName	Name of the interface
Idx	Interface index

Returns

The interface reference as a temu_IfaceRef object

temu_getInterfaceType()

TEMU_API void* temu_getInterfaceType

(

const char *

Name

)

temu_getLoggingCategory()

const TEMU_API char* temu_getLoggingCategory	(	temu_Class *	Cls,
		unsigned	CategoryId
	)

temu_getLogginCategory adds a logging category to the class

Parameters

Cls	the class
CategoryId	The category id. Valid range is [8,16)

Returns

Pointer to the category string, NULL for failure.

temu_getProcessorCount()

TEMU_API size_t temu_getProcessorCount

(

void

)

temu_getProcessorCount Get the number of processors in the current simulation

Returns

The number of processors in the current simulation

temu_getProcessors()

TEMU_API temu_Object_** temu_getProcessors

(

void

)

temu_getProcessors Get the list of processors in the current simulation

Returns

An array of processor pointers, the length can be obtained from temu_getProcessorCount()

temu_getPropAccessor()

TEMU_API temu_PropAccessor temu_getPropAccessor	(	temu_Object *	Obj,
		const char *	PropName,
		int	PropIdx
	)

Get a reference to the named property

This is useful as a replacement of temu_getPropref and temu_getPropName. The resulting data structure lets you automatically disambiguate between properties and pseudo properties.

The index used will be PropIdx, or K if the PropName string has an array suffix [K].

Parameters

Obj	An object of a class with the relevant property registered.
PropName	The name of the property to be queried.
PropIdx	Index in property array.

Returns

A struct containing prop accessor data.

temu_getPropDynLength()

TEMU_API int temu_getPropDynLength	(	const temu_Object_ *	Obj,
		const char *	PropName
	)

Get the dynamic length of the property

Normally, the temu_getPropLength() would return 1 for a dynamic array. This means that there is one dynamic array. In case the length of the dynamic array is needed, this function can be used.

Parameters

Obj	Pointer to the object of the property
PropName	Name of the property

Returns

Dynamic length of property

temu_getPropLength()

TEMU_API int temu_getPropLength	(	const temu_Object_ *	Obj,
		const char *	PropName
	)

Returns property length/size if a property is an array

Parameters

Obj	Pointer to the object of the property
PropName	Name of the property

Returns

The length of the property

temu_getPropName()

TEMU_API temu_PropName temu_getPropName	(	const temu_Object_ *	Obj,
		const char *	PropName
	)

Get a reference to a named property.

Parameters

Obj	An object of a class with the relevant property registered.
PropName	The name of the property to be queried.

Returns

Prop name object, note that the returned name string is not the same as the passed string. The returned string has a lifetime bound to the class, hence it can be returned without any problems.

temu_getPropref()

TEMU_API temu_Propref temu_getPropref	(	const temu_Object_ *	Obj,
		const char *	PropName
	)

Get a reference to the named property. The propref is a typetag and a pointer to the raw value, as such it does not work with delegated properties in components, nor with pseudo properties.

Parameters

Obj	An object of a class with the relevant property registered.
PropName	The name of the property to be queried.

Returns

Object of the property reference

temu_getPropType()

TEMU_API temu_Type temu_getPropType	(	const temu_Object_ *	Obj,
		const char *	PropName
	)

Get the type of a property

Parameters

Obj	Pointer to the object of the property
PropName	Name of the property

Returns

Property type

temu_getValue()

TEMU_API temu_Propval temu_getValue	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get the value of a property from an object

Parameters

Obj	The object that contains the property
PropName	Property name
Idx	Index of the property. Set to 0 if the property is not an array

Returns

The value of the property

temu_getValueDouble()

TEMU_API double temu_getValueDouble	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get property (without side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Idx	Index in property array (set to 0 if scalar)

Returns

The property value converted to double

temu_getValueI16()

TEMU_API int16_t temu_getValueI16	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get the value of a property from an object if it is an int16

Parameters

Obj	The object that contains the property
PropName	Property name
Idx	Index of the property. Set to 0 if the property is not an array

Returns

The value of the property

temu_getValueI32()

TEMU_API int32_t temu_getValueI32	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get the value of a property from an object if it is an int32

Parameters

Obj	The object that contains the property
PropName	Property name
Idx	Index of the property. Set to 0 if the property is not an array

Returns

The value of the property

temu_getValueI64()

TEMU_API int64_t temu_getValueI64	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get the value of a property from an object if it is an int64

Parameters

Obj	The object that contains the property
PropName	Property name
Idx	Index of the property. Set to 0 if the property is not an array

Returns

The value of the property

temu_getValueI8()

TEMU_API int8_t temu_getValueI8	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get the value of a property from an object if it is an int8

Parameters

Obj	The object that contains the property
PropName	Property name
Idx	Index of the property. Set to 0 if the property is not an array

Returns

The value of the property

temu_getValueSigned()

TEMU_API int64_t temu_getValueSigned	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get property (without side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Idx	Index in property array (set to 0 if scalar)

Returns

The property value converted to signed

temu_getValueU16()

TEMU_API uint16_t temu_getValueU16	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get the value of a property from an object if it is an uint16

Parameters

Obj	The object that contains the property
PropName	Property name
Idx	Index of the property. Set to 0 if the property is not an array

Returns

The value of the property

temu_getValueU32()

TEMU_API uint32_t temu_getValueU32	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get the value of a property from an object if it is an uint32

Parameters

Obj	The object that contains the property
PropName	Property name
Idx	Index of the property. Set to 0 if the property is not an array

Returns

The value of the property

temu_getValueU64()

TEMU_API uint64_t temu_getValueU64	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get the value of a property from an object if it is an uint64

Parameters

Obj	The object that contains the property
PropName	Property name
Idx	Index of the property. Set to 0 if the property is not an array

Returns

The value of the property

temu_getValueU8()

TEMU_API uint8_t temu_getValueU8	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get the value of a property from an object if it is an uint8

Parameters

Obj	The object that contains the property
PropName	Property name
Idx	Index of the property. Set to 0 if the property is not an array

Returns

The value of the property

temu_getValueUnsigned()

TEMU_API uint64_t temu_getValueUnsigned	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Get property (without side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Idx	Index in property array (set to 0 if scalar)

Returns

The property value converted to unsigned

temu_getVTable()

TEMU_API void* temu_getVTable

(

const temu_Object_ *

Obj

)

Get the VTable pointer for an object. This only works for internal objects that inherits from temu_Object.

Parameters

Obj	The object in question

Returns

Pointer to the vtable in question

temu_getVTableForClass()

TEMU_API void* temu_getVTableForClass

(

temu_Class *

Cls

)

Get the VTable pointer for a class

Parameters

Cls	The class, for which the vtable is to be retrieved

Returns

Pointer to the vtable in question

temu_ifaceRefArrayAlloc()

TEMU_API temu_IfaceRefArray temu_ifaceRefArrayAlloc

(

unsigned

Reserve

)

Allocate interface array.

Parameters

Reserve

Number of entries to reserve initially.

Returns

The allocated interface array.

temu_ifaceRefArrayDispose()

TEMU_API void temu_ifaceRefArrayDispose

(

temu_IfaceRefArray *

Arr

)

temu_ifaceRefArrayGet()

TEMU_API temu_IfaceRef temu_ifaceRefArrayGet	(	temu_IfaceRefArray *	Arr,
		unsigned	idx
	)

Get the index of the interface reference array.

Parameters

Arr	The interface reference array
idx	is the index of the array

Returns

The interface array with in bounds.

temu_ifaceRefArrayPush()

TEMU_API void temu_ifaceRefArrayPush	(	temu_IfaceRefArray *Arr	TEMU_NONNULL,
		temu_IfaceRef	Iface
	)

Push an interface reference to the interface array.

Parameters

Arr	The interface reference array
Iface	The interface reference (object-interface pointer pair)

temu_ifaceRefArrayPush2()

TEMU_API void temu_ifaceRefArrayPush2	(	temu_IfaceRefArray *Arr	TEMU_NONNULL,
		temu_Object_ *Obj	TEMU_NONNULL,
		void *Iface	TEMU_NONNULL
	)

Push an object and raw interface pointer to an interface array.

Parameters

Arr	The interface reference array.
Obj	The object implementing the relevant interface
Iface	Pointer to the interface struct.

temu_ifaceRefArraySize()

TEMU_API unsigned temu_ifaceRefArraySize

(

temu_IfaceRefArray *

Arr

)

Get the length of a dynamically allocated interface array.

Parameters

Arr	The interface array to get the size from.

Returns

The length in number of entries.

temu_indexForInterface()

TEMU_API int temu_indexForInterface	(	const temu_Object_ *	Obj,
		const void *	Iface
	)

Get index for interface

Parameters

Obj	Pointer to the object that contains the interface
Iface	Pointer to the interface

Returns

Index of interface if it is in an iface array. Otherwise it returns -1. Consequently the function only have valid result for interface arrays.

temu_inlineDeserialiseJSON()

TEMU_API int temu_inlineDeserialiseJSON

(

const char *

FileName

)

De-serialise the simulation state.

This function directly restores properties on already created objects. It does not clear the objects system. Thus pointers to objects remains stable after a snapshot restore.

If a class implements the ObjectIface, the (optional) deserialise procedure will be called.

Parameters

FileName

The filename that contains the JSON data

Returns

0 on success, otherwise non-zero

temu_isComponent()

TEMU_API int temu_isComponent

(

const temu_Object_ *

Obj

)

temu_isComponent Checks if an object is a component

Parameters

Obj	The object to test

Returns

0 for false, non-zero for true

temu_isCpu()

TEMU_API int temu_isCpu

(

const temu_Object_ *

Obj

)

Predicate for identifying CPU classes. In release without assert builds this runs in O(1) time.

Parameters

Obj	The object to test

Returns

0 for false, non-zero for true

temu_isDiscrete()

TEMU_API int temu_isDiscrete

(

temu_Propval

Pv

)

Checks whether the numeric property is an integer-like

Parameters

Pv	The property to be checked

Returns

0 for false, non-zero for true

temu_isMachine()

TEMU_API int temu_isMachine

(

const temu_Object_ *

Obj

)

Predicate for identifying CPU classes. In release without assert builds this runs in O(1) time..

Parameters

Obj	The object to test

Returns

0 for false, non-zero for true

temu_isMemory()

TEMU_API int temu_isMemory

(

const temu_Object_ *

Obj

)

temu_isMemory Checks whether an object is a memory object

Parameters

Obj	The object to test

Returns

0 for false, non-zero for true

temu_isNormalProperty()

TEMU_API int temu_isNormalProperty	(	temu_Object_ *	Obj,
		const char *	PropName
	)

temu_isNormalProperty Checks whether a property is a normal property (not a pseudo-property)

Parameters

Obj	The object that contains the property
PropName	The property name

Returns

0 for false, non-zero for true

temu_isNumber()

TEMU_API int temu_isNumber

(

temu_Propval

Pv

)

Checks whether a property is a number

Parameters

Pv	The property to be checked

Returns

0 for false, non-zero for true

temu_isPseudoProperty()

TEMU_API int temu_isPseudoProperty	(	temu_Object_ *	Obj,
		const char *	PropName
	)

temu_isPseudoProperty Checks whether a property is a pseudo-property

Parameters

Obj	The object that contains the property
PropName	The property name

Returns

0 for false, non-zero for true

temu_isQualifiedAs()

TEMU_API int temu_isQualifiedAs	(	const temu_Object_ *	Obj,
		unsigned	Qualifier
	)

temu_isQualifiedAs Check if an object is qualified as Qualifier

Parameters

Obj	The object to be checked
Qualifier	The qualification to be checked

Returns

0 for false, non-zero for true

temu_isReal()

TEMU_API int temu_isReal

(

temu_Propval

Pv

)

Checks whether a property is a real number

Parameters

Pv	The property to be checked

Returns

0 for false, non-zero for true

temu_isSigned()

TEMU_API int temu_isSigned

(

temu_Propval

Pv

)

temu_isString()

TEMU_API int temu_isString

(

temu_Propval

Pv

)

Checks whether a property is a string

Parameters

Pv	The property to be checked

Returns

0 for false, non-zero for true

temu_isUnsigned()

TEMU_API int temu_isUnsigned

(

temu_Propval

Pv

)

temu_isValidClassName()

TEMU_API int temu_isValidClassName

(

const char *

Name

)

temu_isValidInterfaceName()

TEMU_API int temu_isValidInterfaceName

(

const char *

Name

)

temu_isValidObjectName()

TEMU_API int temu_isValidObjectName

(

const char *

Name

)

temu_isValidPropertyName()

TEMU_API int temu_isValidPropertyName

(

const char *

Name

)

temu_listAppend()

TEMU_API void temu_listAppend	(	temu_List *	List,
		temu_Propval	Val
	)

Add an element to the end of a linked-list

Parameters

List	The list, to which the element to be added
Val	The element to be added

temu_listCreate()

TEMU_API temu_List temu_listCreate

(

temu_Type

Typ

)

Create a linked-list object

Parameters

Typ	The type to be stored in the elements of the linked list

Returns

A newly created list.

temu_listDispose()

TEMU_API void temu_listDispose

(

temu_List *

List

)

Delete a linked-list object

Parameters

List	The list to be deleted

temu_listGetHead()

TEMU_API temu_ListNode* temu_listGetHead

(

temu_List *

List

)

Get the first element of a linked-list

Parameters

List	The list, whose first element is requested

Returns

Pointer to the first element of the linked-list

temu_listGetNext()

TEMU_API temu_ListNode* temu_listGetNext

(

temu_ListNode *

Node

)

Get the next element of a linked list

Parameters

Node	The node, whose next element is requested

Returns

The next element if available, otherwise nullptr

temu_listGetPrev()

TEMU_API temu_ListNode* temu_listGetPrev

(

temu_ListNode *

Node

)

Get the previous element of a linked list

Parameters

Node	The node, whose next element is requested

Returns

The previous element if available, otherwise nullptr

temu_listGetTail()

TEMU_API temu_ListNode* temu_listGetTail

(

temu_List *

List

)

Get the last element of a linked-list

Parameters

List	The list, whose last element is requested

Returns

Pointer to the last element of the linked-list

temu_listNodeGetVal()

TEMU_API temu_Propval temu_listNodeGetVal

(

temu_ListNode *

Node

)

Get value of a linked-list node

Parameters

Node	The node, from which the value to be extracted

Returns

The value extracted from the node

temu_listPrepend()

TEMU_API void temu_listPrepend	(	temu_List *	List,
		temu_Propval	Val
	)

Add an element to the beginning of a linked-list

Parameters

List	The list, to which the element to be added
Val	The element to be added

temu_listRemoveHead()

TEMU_API temu_Propval temu_listRemoveHead

(

temu_List *

List

)

Removes the first element of a linked-list

Parameters

List	The list, from which the first element to be removed

Returns

The element that was removed from the list

temu_listRemoveTail()

TEMU_API temu_Propval temu_listRemoveTail

(

temu_List *

List

)

Removes the last element of a linked-list

Parameters

List	The list, from which the last element to be removed

Returns

The element that was removed from the list

temu_loadPlugin()

TEMU_API int temu_loadPlugin

(

const char *

PluginName

)

Load a plugin. When a plugin is loaded the temu_pluginInit function will be called. This function should create and define any classes that the plugin provides.

The function loads plugins following the operating system's loading rules. This means in particular that first, the plugin will be found in the RPATH location of libTEMUSupport (which refers to the TEMU lib directory). Secondly, it will look in the LD_LIBRARY_PATH and other standard load directories.

In practice, it will look for lib<Plugin>.so in the TEMU plugin paths, or libTEMU<Plugin>.so in the same paths. It will then fallback on attempting to load libTEMU<Plugin>.so from the system load paths. If the plugin name contains a slash '/' it will be treated as a path and not a plugin name.

Parameters

PluginName

A path or plugin name

Returns

0 on success, non-zero otherwise.

temu_loadPluginGlobal()

TEMU_API int temu_loadPluginGlobal

(

const char *

PluginName

)

Load a plugin. When a plugin is loaded the temu_pluginInit function will be called. This function should create and define any classes that the plugin provides.

The plugin will be made available globally for the linker (e.g. using RTLD_GLOBAL).

This is not recommended for normal TEMU plugins.

The function loads plugins following the operating system's loading rules. This means in particular that first, the plugin will be found in the RPATH location of libTEMUSupport (which refers to the TEMU lib directory). Secondly, it will look in the LD_LIBRARY_PATH and other standard load directories.

In practice, it will look for lib<Plugin>.so in the TEMU plugin paths, or libTEMU<Plugin>.so in the same paths. It will then fallback on attempting to load libTEMU<Plugin>.so from the system load paths. If the plugin name contains a slash '/' it will be treated as a path and not a plugin name.

Parameters

PluginName

A path or plugin name

Returns

0 on success, non-zero otherwise.

temu_nameForClass()

const TEMU_API char* temu_nameForClass

(

temu_Class *

Cls

)

temu_nameForClass Get the class name from its object

Parameters

Cls	Pointer to the object of the class in question

Returns

The name of the class as a C-string

temu_nameForInterface()

const TEMU_API char* temu_nameForInterface	(	const temu_Object_ *	Obj,
		const void *	Iface
	)

Get name for interface

Parameters

Obj	Pointer to the object that contains the interface
Iface	Pointer to the interface

Returns

The name of the interface as C-string

temu_nameForObject()

const TEMU_API char* temu_nameForObject

(

const temu_Object_ *

Obj

)

Get the name of an object

Parameters

Obj	Pointer to the object

Returns

Name of the object as C-string

temu_objectForName()

TEMU_API temu_Object_* temu_objectForName

(

const char *

Name

)

Get object for name

Parameters

Name	The name of the object

Returns

Pointer to the object

temu_objectHasCmd()

TEMU_API int temu_objectHasCmd	(	const temu_Object_ *	Obj,
		const char *	CmdName
	)

Check if object has a command

Parameters

Obj	Object pointer
CmdName	Name of command

Returns

0 in case command does not exist. Otherwise 1.

temu_objectHasIface()

TEMU_API int temu_objectHasIface	(	const temu_Object_ *	Obj,
		const char *	IfaceName
	)

Check if the object has a named interface

Parameters

Obj	Pointer to the object to query
IfaceName	Interface name to look for

Returns

0 if the interface does not exist, otherwise the interface exists

temu_objectHasProp()

TEMU_API int temu_objectHasProp	(	const temu_Object_ *	Obj,
		const char *	PropName
	)

Check if the object has a named property

Parameters

Obj	Pointer to the object of the property
PropName	Name of the property

Returns

0 if the property does not exist, otherwise the property is valid

temu_objsysClear()

TEMU_API void temu_objsysClear

(

void

)

Erase all classes, interfaces, properties and objects registered in the object system.

temu_objsysClearObjects()

TEMU_API void temu_objsysClearObjects

(

void

)

Erase all objects, but do not delete classes.

temu_pluginPathAppend()

TEMU_API void temu_pluginPathAppend

(

const char *

Path

)

temu_pluginPathAppend Add a path to the list of paths, where T-emu searches for plugins

Parameters

Path	The path to append

temu_pluginPathPrint()

TEMU_API void temu_pluginPathPrint

(

void

)

temu_pluginPathPrint Print the list of paths, where T-emu searches for plugins

temu_pluginPathRemove()

TEMU_API void temu_pluginPathRemove

(

const char *

Path

)

temu_pluginPathRemove Remove a path from the list of paths, where T-emu searches for plugins

Parameters

Path

to remove

temu_propInfoForClass()

TEMU_API int temu_propInfoForClass	(	temu_Class *	Cls,
		unsigned	PIIndex,
		unsigned	PICount,
		temu_PropInfo *	PI
	)

Get property info for class

It is possible to extract low level property info data using this function. This can be useful if integrating in another simulator or if integrating the system in e.g. a GUI in which you need to provide object introspection.

The function can be called with the PI array set to NULL to return the number of properties in the class.

You can read out all property fields using the following sequence:

temu_PropInfo PI; unsigned i = 0; int r;
while ((r = temu_propInfoForClass(C, i, 1, &PI)) == 1) {
  // ...
  i += r;
}

Parameters

Cls	The class to inspect
PIIndex	The property index to read from.
PICount	Size of PI array in number of entries. \Param PI Pointer to an array of prop info objects to fill in.

Returns

Number of read PI entries. In case PI is NULL, the total number of PIs for the class.

temu_qualifyAs()

TEMU_API void temu_qualifyAs	(	temu_Class *	Cls,
		unsigned	Qualifier
	)

Bless the class so that the isQualified predicate returns 1. Qualifiers with the MSb cleared are reserved for TEMU internals.

Parameters

Cls	The class to be blessed

temu_qualifyAsCpu()

TEMU_API void temu_qualifyAsCpu

(

temu_Class *

Cls

)

Bless the class so that the isCpu predicate returns 1. There are certain assumptions that CPU classes must meet. These assumptions are not stable yet, so do not use this in user code.

Parameters

Cls	The class to be blessed

temu_qualifyAsMachine()

TEMU_API void temu_qualifyAsMachine

(

temu_Class *

Cls

)

Bless the class so that the isMachine predicate returns 1. There are certain assumptions that machine classes must meet. These assumptions are not stable yet, so do not use this in user code.

Parameters

Cls	The class to be blessed

temu_qualifyAsMemory()

TEMU_API void temu_qualifyAsMemory

(

temu_Class *

Cls

)

Bless the class so that the isMemory predicate returns 1

Parameters

Cls	The class to be blessed

temu_readProp()

TEMU_API temu_Propval temu_readProp	(	temu_Object_ *	Obj,
		const char *	Name,
		int	idx
	)

Read property (with side effects)

Parameters

Obj	Object pointer
Name	Name of property
idx	Index in property array (set to 0 if scalar)

Returns

The read value, set to teTY_Invalid for failures

temu_readValue()

TEMU_API temu_Propval temu_readValue	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read a property value with side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Idx	Index of property, set to 0 if it is not an array.

Returns

The property value corresponding to the name. In case of the property not being found, the Typ field of the returned property will be teTY_Invalid.

temu_readValueDouble()

TEMU_API double temu_readValueDouble	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read property (with side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Idx	Index in property array (set to 0 if scalar)

Returns

The property value converted to double

temu_readValueI16()

TEMU_API int16_t temu_readValueI16	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read typed properties.

The readValue[U|I][8|16|32|64] function reads a typed property. The accessor will fail with a fatal error if the read type is not the same as the property type. If the property type is unknown, use the temu_readValue function instead.

Parameters

Obj	Object pointer
PropName	Name of property to read
Idx	Index in property array, set to 0 if the property is not an array

Returns

The read out property value.

temu_readValueI32()

TEMU_API int32_t temu_readValueI32	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read typed properties.

The readValue[U|I][8|16|32|64] function reads a typed property. The accessor will fail with a fatal error if the read type is not the same as the property type. If the property type is unknown, use the temu_readValue function instead.

Parameters

Obj	Object pointer
PropName	Name of property to read
Idx	Index in property array, set to 0 if the property is not an array

Returns

The read out property value.

temu_readValueI64()

TEMU_API int64_t temu_readValueI64	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read typed properties.

The readValue[U|I][8|16|32|64] function reads a typed property. The accessor will fail with a fatal error if the read type is not the same as the property type. If the property type is unknown, use the temu_readValue function instead.

Parameters

Obj	Object pointer
PropName	Name of property to read
Idx	Index in property array, set to 0 if the property is not an array

Returns

The read out property value.

temu_readValueI8()

TEMU_API int8_t temu_readValueI8	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read typed properties.

The readValue[U|I][8|16|32|64] function reads a typed property. The accessor will fail with a fatal error if the read type is not the same as the property type. If the property type is unknown, use the temu_readValue function instead.

Parameters

Obj	Object pointer
PropName	Name of property to read
Idx	Index in property array, set to 0 if the property is not an array

Returns

The read out property value.

temu_readValueSigned()

TEMU_API int64_t temu_readValueSigned	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read property (with side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Idx	Index in property array (set to 0 if scalar)

Returns

The property value converted to signed

temu_readValueU16()

TEMU_API uint16_t temu_readValueU16	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read typed properties.

The readValue[U|I][8|16|32|64] function reads a typed property. The accessor will fail with a fatal error if the read type is not the same as the property type. If the property type is unknown, use the temu_readValue function instead.

Parameters

Obj	Object pointer
PropName	Name of property to read
Idx	Index in property array, set to 0 if the property is not an array

Returns

The read out property value.

temu_readValueU32()

TEMU_API uint32_t temu_readValueU32	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read typed properties.

The readValue[U|I][8|16|32|64] function reads a typed property. The accessor will fail with a fatal error if the read type is not the same as the property type. If the property type is unknown, use the temu_readValue function instead.

Parameters

Obj	Object pointer
PropName	Name of property to read
Idx	Index in property array, set to 0 if the property is not an array

Returns

The read out property value.

temu_readValueU64()

TEMU_API uint64_t temu_readValueU64	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read typed properties.

The readValue[U|I][8|16|32|64] function reads a typed property. The accessor will fail with a fatal error if the read type is not the same as the property type. If the property type is unknown, use the temu_readValue function instead.

Parameters

Obj	Object pointer
PropName	Name of property to read
Idx	Index in property array, set to 0 if the property is not an array

Returns

The read out property value.

temu_readValueU8()

TEMU_API uint8_t temu_readValueU8	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read typed properties.

The readValue[U|I][8|16|32|64] function reads a typed property. The accessor will fail with a fatal error if the read type is not the same as the property type. If the property type is unknown, use the temu_readValue function instead.

Parameters

Obj	Object pointer
PropName	Name of property to read
Idx	Index in property array, set to 0 if the property is not an array

Returns

The read out property value.

temu_readValueUnsigned()

TEMU_API uint64_t temu_readValueUnsigned	(	temu_Object_ *	Obj,
		const char *	PropName,
		int	Idx
	)

Read property (with side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Idx	Index in property array (set to 0 if scalar)

Returns

The property value converted to unsigned

temu_registerClass()

TEMU_API temu_Class* temu_registerClass	(	const char *	ClsName,
		temu_ObjectCreateFunc	Create,
		temu_ObjectDisposeFunc	Dispose
	)

Register a class in the TEMU object system. With these classes, the TEMU object system is responsible for allocation and de-allocation.

Parameters

ClsName	The name of the class that is to be created.
Create	A constructor, the constructor is responsible for allocation and initialisation of the object.
Dispose	A destructor, this function is responsible for deleting the objects of the class.

Returns

A pointer to the class object that can be further used to register properties and interfaces.

temu_registerInterfaceType()

TEMU_API void* temu_registerInterfaceType

(

const char *

Name

)

temu_requireInterface()

TEMU_API void temu_requireInterface	(	temu_Class *	Cls,
		const char *	PropName,
		const char *	IfaceType
	)

Associate the interface reference property with an interface type.

Setting the type, prevents the connect command / function to assign the connection if the target interface type is not the same as the property interface reference type.

Parameters

Cls	Class pointer
PropName	Name of interface reference property
IfaceType	Type required to connect the property

temu_serialiseJSON()

TEMU_API int temu_serialiseJSON

(

const char *

FileName

)

Serialise the simulation state to the given file name.

The serialisation writes a JSON formatted file and calls the serialise procedure in the (optional) ObjectIface if it is implemented.

The serialisation interface can for example be used to write out memory buffers to separate files as such data should not be written to a JSON file.

Parameters

FileName

The filename, to which the JSON data is to be stored

Returns

0 on success, otherwise non-zero

temu_serialiseProp()

TEMU_API void temu_serialiseProp	(	void *	Ctxt,
		const char *	Name,
		temu_Type	Typ,
		int	Count,
		void *	Data
	)

Serialise an explicit property, this can be called from the serialisiation interface. Note that the availability of pseudo properties makes this function and the serialise interface more or less obsolete.

Parameters

Ctxt	The context object that has the property (same as passed to serialise function in the interface)
Name	The name of the property
Typ	The type of the property
Count	0 if the property is not an array, otherwise the element number in the property
Data	Serialized data

temu_setTimeSource()

TEMU_API void temu_setTimeSource	(	temu_Object_ *	Obj,
		temu_TimeSource_ *	TS
	)

Set time source object for models. Typically TS is a CPU. You can only set the time source for an internal class.

Parameters

Obj	Object to set time source in.
TS	Time source object (CPU or clock model)

temu_setValue()

TEMU_API void temu_setValue	(	temu_Object_ *	Obj,
		const char *	PropName,
		temu_Propval	Val,
		int	Idx
	)

Set a raw property value without side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_setValueDouble()

TEMU_API void temu_setValueDouble	(	temu_Object_ *	Obj,
		const char *	PropName,
		double	Val,
		int	Idx
	)

Set floating point property (without side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Val	The new property value
Idx	Index in property array (set to 0 if scalar)

temu_setValueI16()

TEMU_API void temu_setValueI16	(	temu_Object_ *	Obj,
		const char *	PropName,
		int16_t	Val,
		int	Idx
	)

Set a raw property value without side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_setValueI32()

TEMU_API void temu_setValueI32	(	temu_Object_ *	Obj,
		const char *	PropName,
		int32_t	Val,
		int	Idx
	)

Set a raw property value without side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_setValueI64()

TEMU_API void temu_setValueI64	(	temu_Object_ *	Obj,
		const char *	PropName,
		int64_t	Val,
		int	Idx
	)

Set a raw property value without side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_setValueI8()

TEMU_API void temu_setValueI8	(	temu_Object_ *	Obj,
		const char *	PropName,
		int8_t	Val,
		int	Idx
	)

Set a raw property value without side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_setValueSigned()

TEMU_API void temu_setValueSigned	(	temu_Object_ *	Obj,
		const char *	PropName,
		int64_t	Val,
		int	Idx
	)

Set signed property (without side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Val	The new property value
Idx	Index in property array (set to 0 if scalar)

temu_setValueU16()

TEMU_API void temu_setValueU16	(	temu_Object_ *	Obj,
		const char *	PropName,
		uint16_t	Val,
		int	Idx
	)

Set a raw property value without side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_setValueU32()

TEMU_API void temu_setValueU32	(	temu_Object_ *	Obj,
		const char *	PropName,
		uint32_t	Val,
		int	Idx
	)

Set a raw property value without side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_setValueU64()

TEMU_API void temu_setValueU64	(	temu_Object_ *	Obj,
		const char *	PropName,
		uint64_t	Val,
		int	Idx
	)

Set a raw property value without side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_setValueU8()

TEMU_API void temu_setValueU8	(	temu_Object_ *	Obj,
		const char *	PropName,
		uint8_t	Val,
		int	Idx
	)

Set a raw property value without side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_setValueUnsigned()

TEMU_API void temu_setValueUnsigned	(	temu_Object_ *	Obj,
		const char *	PropName,
		uint64_t	Val,
		int	Idx
	)

Set unsigned property (without side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Val	The new property value
Idx	Index in property array (set to 0 if scalar)

temu_setVTable()

TEMU_API int temu_setVTable	(	temu_Class *	Cls,
		void *	VTable
	)

Set the VTable pointer.

Temu classes, provides the ability to, for internal objects query for a VTable manually in O(1) time. In practice this can be any pointer, but it is typically used to register performance sensitive interfaces. E.g. the CPU and machine classes have their own VTable types that refer to a number of interfaces they implement.

Parameters

Cls	The class, for which the vtable to be set
VTable	Pointer to the vtable to be used

Returns

0 on success, non-zero otherwise.

temu_signedPropval()

TEMU_API temu_Propval temu_signedPropval	(	temu_Type	T,
		int64_t	I
	)

Create a signed propval of the given type

Parameters

T	Type ID, must be a signed integer type tag
I	Integer value

Returns

Property value with the given type and value.

temu_snapshotGetLength()

TEMU_API int temu_snapshotGetLength	(	void *	Ctxt,
		const char *	Name
	)

Get number of entries for the serialized property

Parameters

Ctxt	Context passed to deserialise function
Name	Name of property / key in the serialized file

Returns

Length of the property in elements. Negative on error.

temu_snapshotGetValue()

TEMU_API temu_Propval temu_snapshotGetValue	(	void *	Ctxt,
		const char *	Name,
		int	Idx
	)

Get value for named snapshot value

Parameters

Ctxt	Context is passed to deserialise interface function
Name	Name of the saved value
Idx	Index of the saved value (if array)

Returns

Property value with the contents saved to the snapshot

temu_typenameForInterface()

const TEMU_API char* temu_typenameForInterface	(	const temu_Object_ *	Obj,
		const void *	Iface
	)

Get type name for interface

Parameters

Obj	Pointer to the object that contains the interface
Iface	Pointer to the interface

Returns

The name of the type as C-string

temu_typeToName()

const TEMU_API char* temu_typeToName

(

temu_Type

Typ

)

Get a string representing the type tag.

Parameters

Typ	The type, whose name is required

Returns

The name as a C-string

temu_unsignedPropval()

TEMU_API temu_Propval temu_unsignedPropval	(	temu_Type	T,
		uint64_t	U
	)

Create an unsigned propval of the given type

Parameters

T	Type ID, must be an unsigned integer type tag
U	Integer value

Returns

Property value with the given type and value.

temu_vecCreate()

TEMU_API temu_Vector temu_vecCreate

(

temu_Type

Typ

)

Create a vector object

Parameters

Typ	The type of the elements

Returns

the vector object created

temu_vecDispose()

TEMU_API void temu_vecDispose

(

temu_Vector *

Vec

)

Delete a vector object

Parameters

Vec	The vector object to be deleted

temu_vecGetData()

TEMU_API void* temu_vecGetData

(

temu_Vector *

Vec

)

Retrieve the array of elements of a vector

Parameters

Vec	The vector, whose elements are requested

Returns

Returns a pointer to the first element of the vector

temu_vecGetSize()

TEMU_API size_t temu_vecGetSize

(

temu_Vector *

Vec

)

Get the number of elements of a vector

Parameters

Vec	The vector, whose size to be retrieved

Returns

The number of elements in Vec

temu_vecPush()

TEMU_API void temu_vecPush	(	temu_Vector *	Vec,
		temu_Propval	Val
	)

Add an element to a vector object

Parameters

Vec	The vector, to which the element to be added
Val	The element to be added

temu_writeProp()

TEMU_API int temu_writeProp	(	temu_Object_ *	Obj,
		const char *	Name,
		int	idx,
		temu_Propval *	PV
	)

Write property (with side effects)

Parameters

Obj	Object pointer
Name	Name of property
idx	Index in property array (set to 0 if scalar)
PV	Pointer to propval

Returns

0 if the property was written

temu_writeValue()

TEMU_API void temu_writeValue	(	temu_Object_ *	Obj,
		const char *	PropName,
		temu_Propval	Val,
		int	Idx
	)

Write a property value with side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_writeValueDouble()

TEMU_API void temu_writeValueDouble	(	temu_Object_ *	Obj,
		const char *	PropName,
		double	Val,
		int	Idx
	)

Write floating point property (with side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Val	The new property value
Idx	Index in property array (set to 0 if scalar)

temu_writeValueI16()

TEMU_API void temu_writeValueI16	(	temu_Object_ *	Obj,
		const char *	PropName,
		int16_t	Val,
		int	Idx
	)

Write a property value with side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_writeValueI32()

TEMU_API void temu_writeValueI32	(	temu_Object_ *	Obj,
		const char *	PropName,
		int32_t	Val,
		int	Idx
	)

Write a property value with side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_writeValueI64()

TEMU_API void temu_writeValueI64	(	temu_Object_ *	Obj,
		const char *	PropName,
		int64_t	Val,
		int	Idx
	)

Write a property value with side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_writeValueI8()

TEMU_API void temu_writeValueI8	(	temu_Object_ *	Obj,
		const char *	PropName,
		int8_t	Val,
		int	Idx
	)

Write a property value with side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_writeValueObj()

TEMU_API void temu_writeValueObj	(	temu_Object *	Obj,
		const char *	PropName,
		temu_Object *	Val,
		int	Idx
	)

Write a property value with side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_writeValueSigned()

TEMU_API void temu_writeValueSigned	(	temu_Object_ *	Obj,
		const char *	PropName,
		int64_t	Val,
		int	Idx
	)

Write signed property (with side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Val	The new property value
Idx	Index in property array (set to 0 if scalar)

temu_writeValueU16()

TEMU_API void temu_writeValueU16	(	temu_Object_ *	Obj,
		const char *	PropName,
		uint16_t	Val,
		int	Idx
	)

Write a property value with side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_writeValueU32()

TEMU_API void temu_writeValueU32	(	temu_Object_ *	Obj,
		const char *	PropName,
		uint32_t	Val,
		int	Idx
	)

Write a property value with side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_writeValueU64()

TEMU_API void temu_writeValueU64	(	temu_Object_ *	Obj,
		const char *	PropName,
		uint64_t	Val,
		int	Idx
	)

Write a property value with side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_writeValueU8()

TEMU_API void temu_writeValueU8	(	temu_Object_ *	Obj,
		const char *	PropName,
		uint8_t	Val,
		int	Idx
	)

Write a property value with side-effects

Parameters

Obj	Object pointer
PropName	Name of property to read.
Val	The value to set. It must be of the correct type.
Idx	Index of property, set to 0 if it is not an array.

temu_writeValueUnsigned()

TEMU_API void temu_writeValueUnsigned	(	temu_Object_ *	Obj,
		const char *	PropName,
		uint64_t	Val,
		int	Idx
	)

Write unsigned property (with side effects)

Parameters

Obj	Object pointer
PropName	Name of property
Val	The new property value
Idx	Index in property array (set to 0 if scalar)
