Memory.h File Reference

#include "temu-c/Support/Memory.h"
#include "temu-c/Support/Objsys.h"
#include <stdbool.h>
#include <stdint.h>

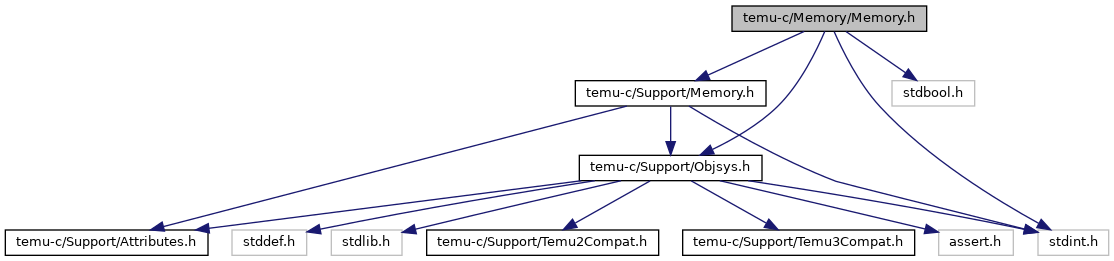

Include dependency graph for Memory.h:

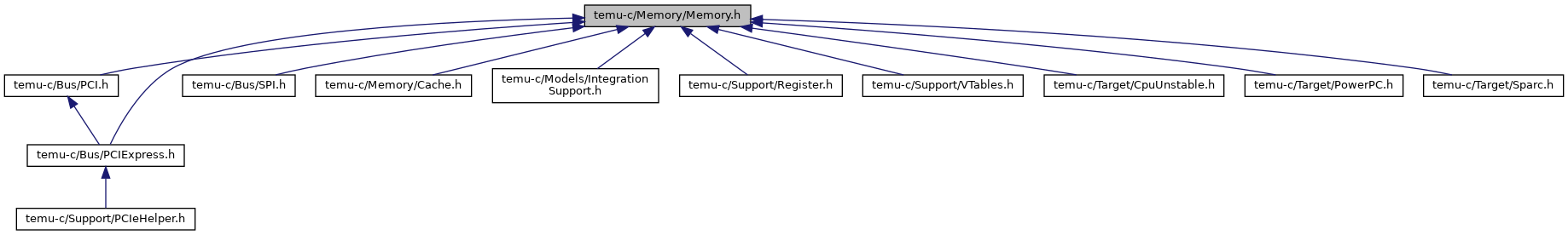

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	temu_MemTransaction
struct	temu_MemAccessCapabilities
struct	temu_MemAccessIface
struct	temu_MemoryIface

Macros
#define	TEMU_MT_CACHEABLE   1
#define	TEMU_MT_BYPASS_CACHE   (1 << 1)
#define	TEMU_MT_FORCE_CACHE_MISS   (1 << 2)
#define	TEMU_MT_FAILED   (1 << 3)
#define	TEMU_MT_CACHE_HIT   (1 << 4)
#define	TEMU_MT_PRIV_SHIFT   (5)
#define	TEMU_MT_PRIV_MASK   (7 << 5)
#define	TEMU_MT_PRIV_USER   (0 << 5)
#define	TEMU_MT_PRIV_SUPER   (1 << 5)
#define	TEMU_MT_PRIV_HYPER   (2 << 5)
#define	TEMU_MT_PROBE   (1 << 8)
#define	TEMU_MT_SELF_MODIFYING   (1 << 9)
#define	TEMU_MT_ENDIAN_BIT   10
#define	TEMU_MT_BIG_ENDIAN   (0 << 10)
#define	TEMU_MT_LITTLE_ENDIAN   (1 << 10)
#define	TEMU_MT_ISA_0   (0 << 11)
#define	TEMU_MT_ISA_1   (1 << 11)
#define	TEMU_MT_ISA_2   (2 << 11)
#define	TEMU_MT_GET_ISA(flags)   ((flags >> 11) & 7)
#define	TEMU_MT_PROF_ACCESS   (1 << 13)
#define	TEMU_MT_PROF_ACCESS_BIT   13
#define	TEMU_MT_BYPASS_PROT   (1 << 14)
#define	TEMU_MT_READ   (1 << 15)
#define	TEMU_MT_WRITE   (1 << 16)
#define	TEMU_MT_LOCK_ACQUIRE   (1 << 17)
#define	TEMU_MT_LOCK_RELEASE   (1 << 18)
#define	TEMU_MT_LOCK_ACQUIRE_AND_RELEASE   (3 << 17)
#define	TEMU_MT_CHECK_FETCH_ATTRIBS   (1 << 19)
#define	TEMU_MT_ALLOC_IR   (1 << 20)
#define	TEMU_MT_FORCE_REBIND   (1 << 21)
#define	TEMU_MEM_ACCESS_CAP_F8   (1 << 0)
#define	TEMU_MEM_ACCESS_CAP_F16   (1 << 1)
#define	TEMU_MEM_ACCESS_CAP_F32   (1 << 2)
#define	TEMU_MEM_ACCESS_CAP_F64   (1 << 3)
#define	TEMU_MEM_ACCESS_CAP_F_ALL   (0xf)
#define	TEMU_MEM_ACCESS_CAP_R8   (1 << (0 + 4))
#define	TEMU_MEM_ACCESS_CAP_R16   (1 << (1 + 4))
#define	TEMU_MEM_ACCESS_CAP_R32   (1 << (2 + 4))
#define	TEMU_MEM_ACCESS_CAP_R64   (1 << (3 + 4))
#define	TEMU_MEM_ACCESS_CAP_R_ALL   (0xf << 4)
#define	TEMU_MEM_ACCESS_CAP_W8   (1 << (0 + 8))
#define	TEMU_MEM_ACCESS_CAP_W16   (1 << (1 + 8))
#define	TEMU_MEM_ACCESS_CAP_W32   (1 << (2 + 8))
#define	TEMU_MEM_ACCESS_CAP_W64   (1 << (3 + 8))
#define	TEMU_MEM_ACCESS_CAP_W_ALL   (0xf << 8)
#define	TEMU_MEM_ACCESS_CAP_E8   (1 << (0 + 12))
#define	TEMU_MEM_ACCESS_CAP_E16   (1 << (1 + 12))
#define	TEMU_MEM_ACCESS_CAP_E32   (1 << (2 + 12))
#define	TEMU_MEM_ACCESS_CAP_E64   (1 << (3 + 12))
#define	TEMU_MEM_ACCESS_CAP_E_ALL   (0xf << 12)
#define	TEMU_MEM_ACCESS_IFACE_TYPE   "MemAccessIface"
#define	TEMU_MEMORY_IFACE_TYPE   "MemoryIface"

Typedefs
typedef struct temu_MemTransaction	temu_MemTransaction
typedef struct temu_MemoryIface	temu_MemoryIface

Enumerations
enum	temu_InitiatorType { teIT_Cpu, teIT_Device, teIT_Unknown }
enum	temu_MemoryEndianness { teME_BigEndian, teME_LittleEndian, teME_UnspecifiedEndian }

Functions
	TEMU_IFACE_REFERENCE_TYPE (temu_MemAccess)
	TEMU_IFACE_REFERENCE_TYPE (temu_Memory)
int	temu_mapMemorySpace (void *Obj, uint64_t Addr, uint64_t Len, temu_Object_ *MemObj)
int	temu_mapMemorySpaceFlags (void *Obj, uint64_t Addr, uint64_t Len, temu_Object_ *MemObj, uint32_t Flags)
void	temu_setMemAttr (void *Obj, uint64_t Addr, uint64_t Len, temu_MemoryAttr Attr)
void	temu_clearMemAttr (void *Obj, uint64_t Addr, uint64_t Len, temu_MemoryAttr Attr)
int	temu_memoryExchangeTransaction (void *Obj, temu_MemTransaction *MT)
int	temu_memoryWriteTransaction (void *Obj, temu_MemTransaction *MT)
int	temu_memoryReadTransaction (void *Obj, temu_MemTransaction *MT)
int	temu_memoryFetchTransaction (void *Obj, temu_MemTransaction *MT)

Macro Definition Documentation

TEMU_MEM_ACCESS_CAP_E16

#define TEMU_MEM_ACCESS_CAP_E16   (1 << (1 + 12))

TEMU_MEM_ACCESS_CAP_E32

#define TEMU_MEM_ACCESS_CAP_E32   (1 << (2 + 12))

TEMU_MEM_ACCESS_CAP_E64

#define TEMU_MEM_ACCESS_CAP_E64   (1 << (3 + 12))

TEMU_MEM_ACCESS_CAP_E8

#define TEMU_MEM_ACCESS_CAP_E8   (1 << (0 + 12))

TEMU_MEM_ACCESS_CAP_E_ALL

#define TEMU_MEM_ACCESS_CAP_E_ALL   (0xf << 12)

TEMU_MEM_ACCESS_CAP_F16

#define TEMU_MEM_ACCESS_CAP_F16   (1 << 1)

TEMU_MEM_ACCESS_CAP_F32

#define TEMU_MEM_ACCESS_CAP_F32   (1 << 2)

TEMU_MEM_ACCESS_CAP_F64

#define TEMU_MEM_ACCESS_CAP_F64   (1 << 3)

TEMU_MEM_ACCESS_CAP_F8

#define TEMU_MEM_ACCESS_CAP_F8   (1 << 0)

TEMU_MEM_ACCESS_CAP_F_ALL

#define TEMU_MEM_ACCESS_CAP_F_ALL   (0xf)

TEMU_MEM_ACCESS_CAP_R16

#define TEMU_MEM_ACCESS_CAP_R16   (1 << (1 + 4))

TEMU_MEM_ACCESS_CAP_R32

#define TEMU_MEM_ACCESS_CAP_R32   (1 << (2 + 4))

TEMU_MEM_ACCESS_CAP_R64

#define TEMU_MEM_ACCESS_CAP_R64   (1 << (3 + 4))

TEMU_MEM_ACCESS_CAP_R8

#define TEMU_MEM_ACCESS_CAP_R8   (1 << (0 + 4))

TEMU_MEM_ACCESS_CAP_R_ALL

#define TEMU_MEM_ACCESS_CAP_R_ALL   (0xf << 4)

TEMU_MEM_ACCESS_CAP_W16

#define TEMU_MEM_ACCESS_CAP_W16   (1 << (1 + 8))

TEMU_MEM_ACCESS_CAP_W32

#define TEMU_MEM_ACCESS_CAP_W32   (1 << (2 + 8))

TEMU_MEM_ACCESS_CAP_W64

#define TEMU_MEM_ACCESS_CAP_W64   (1 << (3 + 8))

TEMU_MEM_ACCESS_CAP_W8

#define TEMU_MEM_ACCESS_CAP_W8   (1 << (0 + 8))

TEMU_MEM_ACCESS_CAP_W_ALL

#define TEMU_MEM_ACCESS_CAP_W_ALL   (0xf << 8)

TEMU_MEM_ACCESS_IFACE_TYPE

#define TEMU_MEM_ACCESS_IFACE_TYPE   "MemAccessIface"

TEMU_MEMORY_IFACE_TYPE

#define TEMU_MEMORY_IFACE_TYPE   "MemoryIface"

TEMU_MT_ALLOC_IR

#define TEMU_MT_ALLOC_IR   (1 << 20)

TEMU_MT_BIG_ENDIAN

#define TEMU_MT_BIG_ENDIAN   (0 << 10)

TEMU_MT_BYPASS_CACHE

#define TEMU_MT_BYPASS_CACHE   (1 << 1)

TEMU_MT_BYPASS_PROT

#define TEMU_MT_BYPASS_PROT   (1 << 14)

TEMU_MT_CACHE_HIT

#define TEMU_MT_CACHE_HIT   (1 << 4)

TEMU_MT_CACHEABLE

#define TEMU_MT_CACHEABLE   1

TEMU_MT_CHECK_FETCH_ATTRIBS

#define TEMU_MT_CHECK_FETCH_ATTRIBS   (1 << 19)

TEMU_MT_ENDIAN_BIT

#define TEMU_MT_ENDIAN_BIT   10

TEMU_MT_FAILED

#define TEMU_MT_FAILED   (1 << 3)

TEMU_MT_FORCE_CACHE_MISS

#define TEMU_MT_FORCE_CACHE_MISS   (1 << 2)

TEMU_MT_FORCE_REBIND

#define TEMU_MT_FORCE_REBIND   (1 << 21)

TEMU_MT_GET_ISA

#define TEMU_MT_GET_ISA

(

flags

)

((flags >> 11) & 7)

TEMU_MT_ISA_0

#define TEMU_MT_ISA_0   (0 << 11)

TEMU_MT_ISA_1

#define TEMU_MT_ISA_1   (1 << 11)

TEMU_MT_ISA_2

#define TEMU_MT_ISA_2   (2 << 11)

TEMU_MT_LITTLE_ENDIAN

#define TEMU_MT_LITTLE_ENDIAN   (1 << 10)

TEMU_MT_LOCK_ACQUIRE

#define TEMU_MT_LOCK_ACQUIRE   (1 << 17)

TEMU_MT_LOCK_ACQUIRE_AND_RELEASE

#define TEMU_MT_LOCK_ACQUIRE_AND_RELEASE   (3 << 17)

TEMU_MT_LOCK_RELEASE

#define TEMU_MT_LOCK_RELEASE   (1 << 18)

TEMU_MT_PRIV_HYPER

#define TEMU_MT_PRIV_HYPER   (2 << 5)

TEMU_MT_PRIV_MASK

#define TEMU_MT_PRIV_MASK   (7 << 5)

TEMU_MT_PRIV_SHIFT

#define TEMU_MT_PRIV_SHIFT   (5)

TEMU_MT_PRIV_SUPER

#define TEMU_MT_PRIV_SUPER   (1 << 5)

TEMU_MT_PRIV_USER

#define TEMU_MT_PRIV_USER   (0 << 5)

TEMU_MT_PROBE

#define TEMU_MT_PROBE   (1 << 8)

TEMU_MT_PROF_ACCESS

#define TEMU_MT_PROF_ACCESS   (1 << 13)

TEMU_MT_PROF_ACCESS_BIT

#define TEMU_MT_PROF_ACCESS_BIT   13

TEMU_MT_READ

#define TEMU_MT_READ   (1 << 15)

TEMU_MT_SELF_MODIFYING

#define TEMU_MT_SELF_MODIFYING   (1 << 9)

TEMU_MT_WRITE

#define TEMU_MT_WRITE   (1 << 16)

Typedef Documentation

temu_MemoryIface

typedef struct temu_MemoryIface temu_MemoryIface

For objects which have actualm memory (not just registers) This is for the simulator (not the emu core). The procedures should write the data given in bytes to the given physical offset. The offset is a 64 bit uint to support 64 bit targets. The interface is used for example by DMA transactions.

The size argument is in bytes.

The swap argument is used to swap bytes to the host endianess. Specify the log size of the read data types.

• 0: We are reading bytes (bytes will be in target memory order)
• 1: We are reading half words (will be swapped to host order)
• 2: We are reading words (will be swapped)
• 3: We are reading double words (will be swapped) With 0 for swap, we are basically reading a byte array

readBytes and writeBytes should return the number of bytes read / written or negative on error.

temu_MemTransaction

typedef struct temu_MemTransaction temu_MemTransaction

Generic memory transaction.

This type is kept in sync with the emulator core. The layout is guaranteed. and will remain as is, although more fields may be added (at the bottom).

When the emulator core issues a memory transaction (assuming no ATC hit), the core allocates this structure on the stack and fills in some of the fields with default values. The memory transaction is passed by pointer or reference. By filling in the different fields you can adapt the result of the memory transaction.

Enumeration Type Documentation

temu_InitiatorType

enum temu_InitiatorType

Enumerator
teIT_Cpu	Memory transaction initiated by CPU.
teIT_Device	Memory transaction initiated by device.
teIT_Unknown	Memory transaction initiator unknown.

temu_MemoryEndianness

enum temu_MemoryEndianness

Enumerator
teME_BigEndian	Memory access interface in big endian.
teME_LittleEndian	Memory access interface in little endian.
teME_UnspecifiedEndian	Memory access interface in undefined endian.

Function Documentation

temu_clearMemAttr()

void temu_clearMemAttr	(	void *	Obj,
		uint64_t	Addr,
		uint64_t	Len,
		temu_MemoryAttr	Attr
	)

Clear attribute on memory space location

Parameters

Obj	The memory space object
Addr	Physical address where to map the device
Len	Length in bytes of area where the attribute should be set.
Attr	The attribute to clear.

TEMU_IFACE_REFERENCE_TYPE() [1/2]

TEMU_IFACE_REFERENCE_TYPE

(

temu_MemAccess

)

TEMU_IFACE_REFERENCE_TYPE() [2/2]

TEMU_IFACE_REFERENCE_TYPE

(

temu_Memory

)

temu_mapMemorySpace()

int temu_mapMemorySpace	(	void *	Obj,
		uint64_t	Addr,
		uint64_t	Len,
		temu_Object_ *	MemObj
	)

Map memory object into address space

Parameters

Obj	The memory space object
Addr	Physical address where to map the device
Len	Length in bytes of area where the object is mapped.
MemObj	The memory object. This object must correspond to the MemAccessIface

Returns

Zero on success, other values indicates that the mapping failed

temu_mapMemorySpaceFlags()

int temu_mapMemorySpaceFlags	(	void *	Obj,
		uint64_t	Addr,
		uint64_t	Len,
		temu_Object_ *	MemObj,
		uint32_t	Flags
	)

Map memory object into address space with flags

Parameters

Obj	The memory space object
Addr	Physical address where to map the device
Len	Length in bytes of area where the object is mapped.
MemObj	The memory object. This object must correspond to the MemAccessIface
Flags	Sticky flags for memory accesses to that object (e.g. cachable)

Returns

Zero on success, other values indicates that the mapping failed

temu_memoryExchangeTransaction()

int temu_memoryExchangeTransaction	(	void *	Obj,
		temu_MemTransaction *	MT
	)

temu_memoryFetchTransaction()

int temu_memoryFetchTransaction	(	void *	Obj,
		temu_MemTransaction *	MT
	)

temu_memoryReadTransaction()

int temu_memoryReadTransaction	(	void *	Obj,
		temu_MemTransaction *	MT
	)

temu_memoryWriteTransaction()

int temu_memoryWriteTransaction	(	void *	Obj,
		temu_MemTransaction *	MT
	)

temu_setMemAttr()

void temu_setMemAttr	(	void *	Obj,
		uint64_t	Addr,
		uint64_t	Len,
		temu_MemoryAttr	Attr
	)

Set attribute on memory space location

Parameters

Obj	The memory space object
Addr	Physical address where to map the device
Len	Length in bytes of area where the attribute should be set.
Attr	The attribute to set.
